Procedural / Extrusion Geometry

Page Info

• Audience: Intermediate to Advanced

• Prerequisites: comfortable with RefMesh basics and transforms

• Time: 20 minutes

• Output: Parametric/extruded organ geometry and low-level control (Level 3 concept page)

PlantGeom supports two complementary geometry workflows:

• shared geometry with RefMesh + Geometry(ref_mesh=..., transformation=...)

• shared geometry with per-node shape deformation via PointMappedGeometry

• per-node procedural geometry with ExtrudedTubeGeometry and extrusion helpers

If you already know the RefMesh workflow, this page is the extrusion counterpart.

When to Use Which Workflow

Use RefMesh + Geometry when:

• many nodes share the same base organ mesh

• only node transform differs (scale/rotation/translation)

• you want the classic OPF-style "instantiate once, transform many" pattern

Use PointMappedGeometry when:

• many nodes share the same base organ topology, but each organ bends differently

• you want to keep a reusable RefMesh while warping it with a concrete point map

• organ shape is easier to describe from a midrib/guide curve than from rigid transforms alone

Use procedural extrusion when:

• each axis/organ needs its own path or profile

• geometry is easier to define from centerlines and section evolution

• you want to build geometry directly from node parameters

Face Orientation and Normals

A flat lamina_mesh has its upper (adaxial) face toward local +Z. Closed extrusions have outward faces and end caps for convex sections in the local XY plane, consistent scale handedness and regular, unfolded sweeps. Reflections supplied as known affine transforms reverse triangle winding automatically, preserving the authored side of the surface. Ground meshes face upward.

For a custom deformation, declare its handedness when it is known throughout the mesh domain:

blade = lamina_refmesh("oriented_blade"; length=1.0, max_width=0.2)
mirror = OrientedPointMap(p -> (-p[1], p[2], p[3]); orientation=-1)
mirrored_blade = PlantGeom.geometry_to_mesh(PointMappedGeometry(blade, mirror))
(vertices=PlantGeom.nvertices(mirrored_blade), faces=PlantGeom.nelements(mirrored_blade))

(vertices = 225, faces = 384)

orientation=1 declares an orientation-preserving map; orientation=-1 declares an orientation-reversing map. Arbitrary callables without that declaration retain their face order. A single orientation declaration applies throughout the domain; it does not make a folded or self-intersecting mesh valid.

PlantGeom.apply(transform, ref_mesh) also updates stored normals. Affine transforms use normalized inverse-transpose transport; singular transforms retain a direction where the transformed surface has one and use zero for collapsed normals. Other transforms recompute vertex/face normals from their materialized triangles. Shared reference geometry, texture coordinates and material metadata are preserved. Prototype normalization applies the same normal transport when rescaling its reference mesh.

Point-Mapped Geometry

PointMappedGeometry fills the gap between rigid instancing (Geometry) and fully procedural mesh generation (ExtrudedTubeGeometry): the base organ mesh is still reusable, but each node can carry its own deformation map.

PlantGeom now includes a small midrib-driven lamina toolkit for that workflow:

• RationalBezierCurve: NURBS-like weighted Bezier midrib

• lamina_midrib: convenience weighted curve builder

• LaminaMidribMap: point map that wraps a flat lamina around a midrib

• LaminaTwistRollMap: local lamina torsion and edge-roll map

• LaminaAnticlasticWaveMap: anticlastic margin map (one side up, the other down)

• BiomechanicalBendingTransform: cantilever-style organ bending from Young's modulus

• compose_point_maps: compose multiple point maps into one

• lamina_mesh / lamina_refmesh: reusable flat blade reference mesh

For these cereal point maps, parameters are normalized for a unit blade frame (x ∈ [0, 1], |y| ≤ 0.5). Use lamina_refmesh(...; max_width=1.0) and apply physical width later via node transforms or reconstruction attributes. Note: scaling local z strongly also scales down bend amplitude, because midrib deflection is represented in local z by the point map. To define dimensions before deformation, use with_point_map_frame(...). When used through PointMappedGeometry, the input RefMesh coordinates are normalized to blade space automatically (x → [0,1], centered y) before the point-map pipeline, so framed mappings remain stable across source mesh units.

For cereal-like anticlastic ripples (opposite side displacement), use LaminaAnticlasticWaveMap with:

• lateral_strength=0.0

• vertical_strength=1.0

This creates opposite-sign side displacement in the normal direction (+Y and -Y move in opposite Z directions), not a side-to-side zig-zag outline.

Biomechanical Cantilever Bending

For organs that should bend under gravity without explicit biomass simulation, PlantGeom provides:

• final_angle: maximal beam deflection angle (from vertical, radians)

• local_flexion: local incremental bending contribution

• calculate_segment_angles: angle profile along segment boundaries

• BiomechanicalBendingTransform: fast sampled non-linear transform to apply on meshes

BiomechanicalBendingTransform precomputes centerline/frame samples once, so per-vertex evaluation is interpolation only. You can apply it directly to Geometry nodes with transform_mesh! (or compose it with other transforms).

segments = collect(range(0.0, 1.0; length=8))
angles = calculate_segment_angles(25.0, deg2rad(30.0), 1.0, 0.55, segments)

bend = BiomechanicalBendingTransform(
    25.0,
    deg2rad(30.0),
    1.0,
    0.55;
    x_min=0.0,
    x_max=1.0,
    n_samples=96,
)

(angles[1], angles[end], bend(Point(1.0, 0.0, 0.0)))

(0.5235987755982988, 3.1365276012323497, [0.0175334011851262, 0.0, -0.9902165353601948])

beam_length should use the same unit as your mesh local x axis (unless you explicitly adjust x_min/x_max). By default, the helper equations use length_scale=100.0 to match legacy centimeter-based formulations.

For segmented organs modeled as consecutive MTG nodes (legacy leaflet style), you can write angles directly on each segment node with update_segment_angles!.

function segmented_polyline(segment_positions, angle_deg_values)
    boundaries = vcat(segment_positions, 1.0)
    pts = Point2f[(0.0, 0.0)]
    for i in eachindex(angle_deg_values)
        θ = deg2rad(angle_deg_values[i])
        ds = boundaries[i + 1] - boundaries[i]
        x_prev = pts[end][1]
        z_prev = pts[end][2]
        push!(pts, Point2f(x_prev + ds * sin(θ), z_prev + ds * cos(θ)))
    end
    pts
end

mtg = Node(NodeMTG(:/, :Plant, 1, 1))
leaflet_soft = Node(mtg, NodeMTG(:+, :Leaflet, 1, 2))
leaflet_stiff = Node(mtg, NodeMTG(:+, :Leaflet, 2, 2))
segment_positions = [0.0, 0.20, 0.42, 0.66, 0.88]

for (i, pos) in enumerate(segment_positions)
    s_soft = Node(leaflet_soft, NodeMTG(:/, :LeafletSegment, i, 3))
    s_stiff = Node(leaflet_stiff, NodeMTG(:/, :LeafletSegment, i, 3))
    s_soft[:segment_boundaries] = pos
    s_stiff[:segment_boundaries] = pos
end

update_segment_angles!(
    leaflet_soft,
    18.0,
    deg2rad(26.0),
    1.0,
    0.55;
    segment_symbol=:LeafletSegment,
    position_key=:segment_boundaries,
    angle_key=:zenithal_angle,
    degrees=true,
)
update_segment_angles!(
    leaflet_stiff,
    220.0,
    deg2rad(26.0),
    1.0,
    0.55;
    segment_symbol=:LeafletSegment,
    position_key=:segment_boundaries,
    angle_key=:zenithal_angle,
    degrees=true,
)

soft_segments = descendants(leaflet_soft, symbol=:LeafletSegment)
stiff_segments = descendants(leaflet_stiff, symbol=:LeafletSegment)
angles_soft = [s[:zenithal_angle] for s in soft_segments]
angles_stiff = [s[:zenithal_angle] for s in stiff_segments]

soft_poly = segmented_polyline(segment_positions, angles_soft)
stiff_poly = segmented_polyline(segment_positions, angles_stiff)

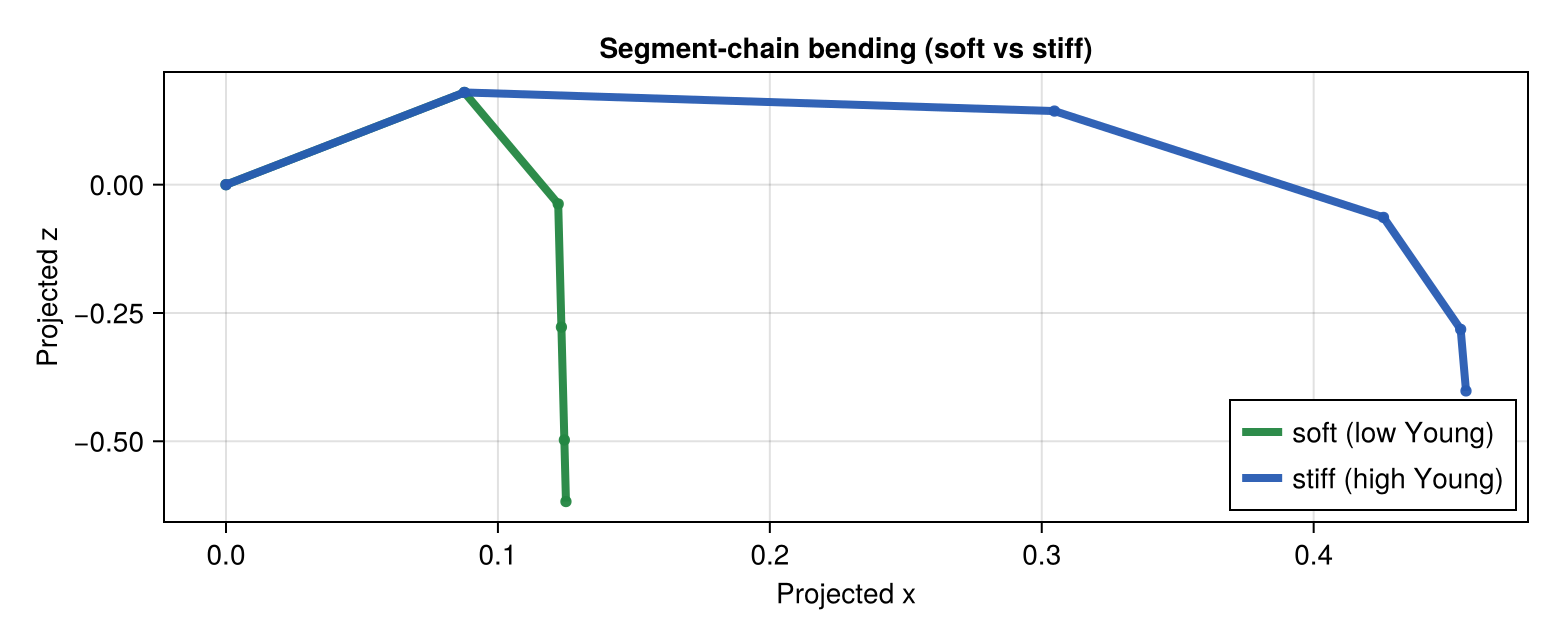

fig = Figure(size=(780, 320))
ax = Axis(fig[1, 1], xlabel="Projected x", ylabel="Projected z", title="Segment-chain bending (soft vs stiff)")
lines!(ax, soft_poly, color=RGBA(0.14, 0.53, 0.26, 0.95), linewidth=4, label="soft (low Young)")
scatter!(ax, soft_poly, color=RGBA(0.14, 0.53, 0.26, 0.95), markersize=8)
lines!(ax, stiff_poly, color=RGBA(0.16, 0.36, 0.70, 0.95), linewidth=4, label="stiff (high Young)")
scatter!(ax, stiff_poly, color=RGBA(0.16, 0.36, 0.70, 0.95), markersize=8)
axislegend(ax, position=:rb)
fig

leaf_ref = lamina_refmesh(
    "CerealBlade";
    length=1.0,
    max_width=1.0,
    n_long=28,
    n_half=4,
    material=RGB(0.22, 0.62, 0.24),
)

base_leaf = PointMappedGeometry(
    leaf_ref,
    with_point_map_frame(compose_point_maps(
        LaminaTwistRollMap(tip_twist_deg=3.0, roll_strength=0.05),
        LaminaMidribMap(base_angle_deg=46.0, bend=0.02, tip_drop=0.00),
    ); length=1.0, width=0.12, z_scale=1.0),
)
steeper_leaf = PointMappedGeometry(
    leaf_ref,
    with_point_map_frame(compose_point_maps(
        LaminaTwistRollMap(
            tip_twist_deg=26.0,
            roll_strength=0.32,
            roll_exponent=1.2,
        ),
        LaminaMidribMap(base_angle_deg=22.0, bend=1.0, tip_drop=1.0),
    ); length=1.0, width=0.12, z_scale=1.0);
    transformation=PlantGeom.compose(
        PlantGeom.Translation(0.0, 0.22, 0.0),
    ),
)

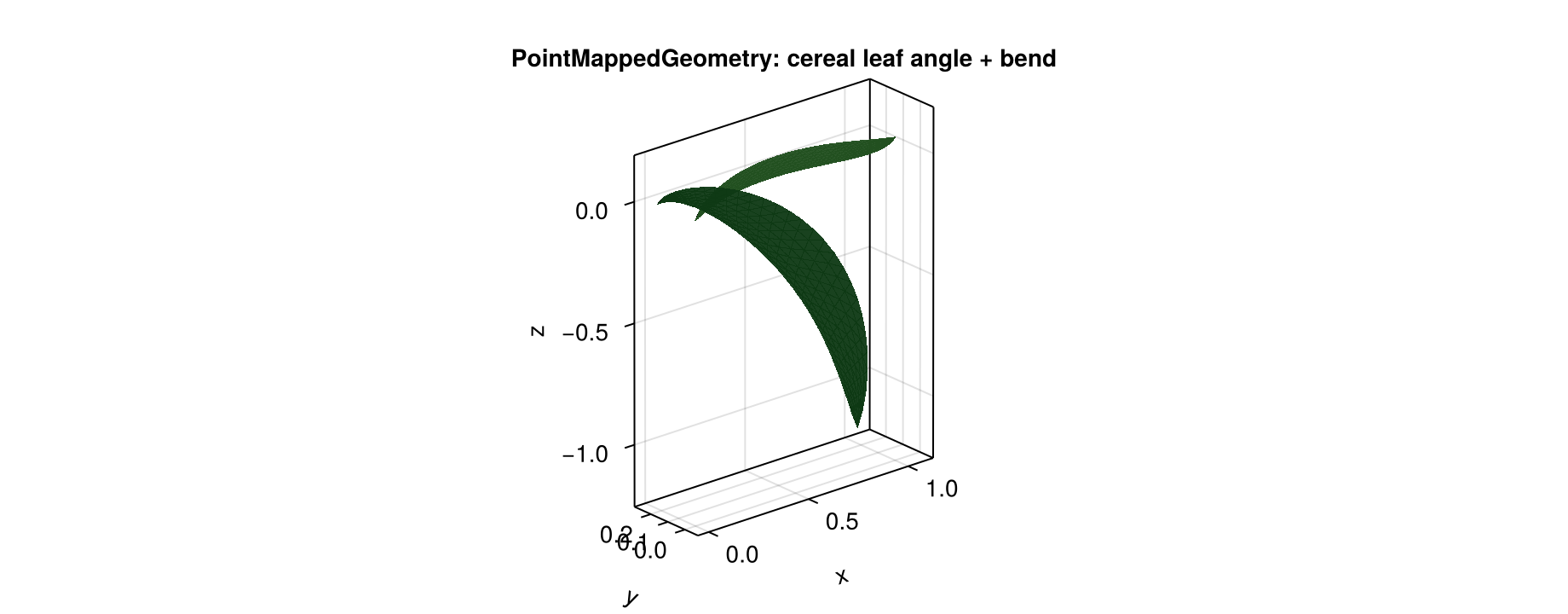

fig = Figure(size=(920, 360))
ax = Axis3(fig[1, 1], title="PointMappedGeometry: cereal leaf angle + bend", aspect = :data)
mesh!(ax, PlantGeom.geometry_to_mesh(base_leaf), color=RGBA(0.30, 0.70, 0.28, 0.95))
mesh!(ax, PlantGeom.geometry_to_mesh(steeper_leaf), color=RGBA(0.12, 0.50, 0.18, 0.95))
fig

The same pattern scales to a small cereal plant:

mtg = Node(NodeMTG(:/, :Plant, 1, 1))
stem = Node(mtg, NodeMTG(:/, :Stem, 1, 2))
stem_path = [
    Point(0.0, 0.0, 0.0),
    Point(0.0, 0.0, 0.44),
    Point(0.0, 0.0, 0.92),
    Point(0.0, 0.0, 1.26),
]
stem[:geometry] = ExtrudedTubeGeometry(
    stem_path;
    n_sides=14,
    radius=0.022,
    radii=[1.0, 0.90, 0.74, 0.50],
    torsion=false,
    cap_ends=true,
    material=RGB(0.54, 0.76, 0.38),
)

blade_ref = lamina_refmesh(
    "CerealBlade";
    length=1.0,
    max_width=1.0,
    n_long=40,
    n_half=8,
    material=RGB(0.20, 0.60, 0.22),
)

leaf_specs = [
    (z=0.20, azimuth_deg=-35.0, insertion_tilt_deg=42.0, base_angle_deg=34.0, bend=0.16, tip_drop=0.04, twist=8.0, roll=0.18, wave_amp=0.008, wave_len=0.23, scale=0.82),
    (z=0.56, azimuth_deg=84.0, insertion_tilt_deg=48.0, base_angle_deg=44.0, bend=0.30, tip_drop=0.08, twist=18.0, roll=0.30, wave_amp=0.010, wave_len=0.19, scale=0.96),
    (z=0.90, azimuth_deg=208.0, insertion_tilt_deg=54.0, base_angle_deg=54.0, bend=0.46, tip_drop=0.14, twist=34.0, roll=0.44, wave_amp=0.012, wave_len=0.15, scale=1.05),
]

for (i, spec) in enumerate(leaf_specs)
    leaf = Node(stem, NodeMTG(:+, :Leaf, i, 2))
    point_map = compose_point_maps(
        LaminaAnticlasticWaveMap(
            amplitude=spec.wave_amp / 0.12,
            wavelength=spec.wave_len,
            edge_exponent=1.6,
            progression_exponent=1.1,
            base_damping=5.0,
            phase_deg=25.0 * i,
            asymmetry=0.10,
            lateral_strength=0.0,
            vertical_strength=1.0,
        ),
        LaminaTwistRollMap(
            tip_twist_deg=spec.twist,
            roll_strength=spec.roll,
            roll_exponent=1.2,
        ),
        LaminaMidribMap(
            base_angle_deg=spec.base_angle_deg,
            bend=spec.bend,
            tip_drop=spec.tip_drop,
        ),
    )
    leaf[:geometry] = PointMappedGeometry(
        blade_ref,
        with_point_map_frame(
            point_map;
            length=spec.scale,
            width=0.12 * spec.scale,
            z_scale=spec.scale,
        );
        transformation=PlantGeom.compose(
            PlantGeom.Translation(0.0, 0.0, spec.z),
            PlantGeom.LinearMap(PlantGeom.RotZ(deg2rad(spec.azimuth_deg))),
            PlantGeom.LinearMap(PlantGeom.RotMatrix(PlantGeom.AngleAxis(deg2rad(-spec.insertion_tilt_deg), 0.0, 1.0, 0.0))),
        ),
    )
end

terminal_leaf = Node(stem, NodeMTG(:+, :Leaf, length(leaf_specs) + 1, 2))
stem_top_z = stem_path[end][3]
terminal_leaf[:geometry] = PointMappedGeometry(
    blade_ref,
    with_point_map_frame(compose_point_maps(
        LaminaAnticlasticWaveMap(
            amplitude=0.008 / 0.12,
            wavelength=0.20,
            edge_exponent=1.6,
            progression_exponent=1.1,
            base_damping=5.0,
            phase_deg=10.0,
            asymmetry=0.05,
            lateral_strength=0.0,
            vertical_strength=1.0,
        ),
        LaminaTwistRollMap(
            tip_twist_deg=10.0,
            roll_strength=0.20,
            roll_exponent=1.1,
        ),
        LaminaMidribMap(
            base_angle_deg=62.0,
            bend=0.22,
            tip_drop=0.05,
        ),
    ); length=0.76, width=0.12 * 0.76, z_scale=0.76);
    transformation=PlantGeom.compose(
        PlantGeom.Translation(0.0, 0.0, stem_top_z),
        PlantGeom.LinearMap(PlantGeom.RotZ(deg2rad(6.0))),
        PlantGeom.LinearMap(PlantGeom.RotMatrix(PlantGeom.AngleAxis(deg2rad(-48.0), 0.0, 1.0, 0.0))),
    ),
)

plantviz(mtg, color=Dict("CerealBlade" => RGB(0.20, 0.60, 0.22), "ExtrudedTube" => RGB(0.54, 0.76, 0.38)))

Cereal Anticlastic Wave (Normal Direction)

This focused comparison isolates the anticlastic effect only: same base blade and bending, with or without LaminaAnticlasticWaveMap.

compare_ref = lamina_refmesh(
    "CerealBladeCompare";
    length=1.0,
    max_width=1.0,
    n_long=72,
    n_half=14,
    material=RGB(0.20, 0.60, 0.22),
)

smooth_leaf = PointMappedGeometry(
    compare_ref,
    compose_point_maps(
        LaminaTwistRollMap(tip_twist_deg=20.0, roll_strength=0.32, roll_exponent=1.15),
        LaminaMidribMap(base_angle_deg=34.0, bend=0.56, tip_drop=0.16),
    );
    transformation=PlantGeom.compose(
        PlantGeom.Translation(0.0, -0.20, 0.0),
        PlantGeom.LinearMap(Diagonal([1.0, 0.14, 0.14])),
    ),
)

wavy_leaf = PointMappedGeometry(
    compare_ref,
    compose_point_maps(
        LaminaAnticlasticWaveMap(
            amplitude=0.022 / 0.14,
            wavelength=0.145,
            edge_exponent=1.7,
            progression_exponent=1.1,
            base_damping=4.5,
            phase_deg=18.0,
            lateral_strength=0.0,
            vertical_strength=1.0,
        ),
        LaminaTwistRollMap(tip_twist_deg=20.0, roll_strength=0.32, roll_exponent=1.15),
        LaminaMidribMap(base_angle_deg=34.0, bend=0.56, tip_drop=0.16),
    );
    transformation=PlantGeom.compose(
        PlantGeom.Translation(0.0, 0.20, 0.0),
        PlantGeom.LinearMap(Diagonal([1.0, 0.14, 0.14])),
    ),
)

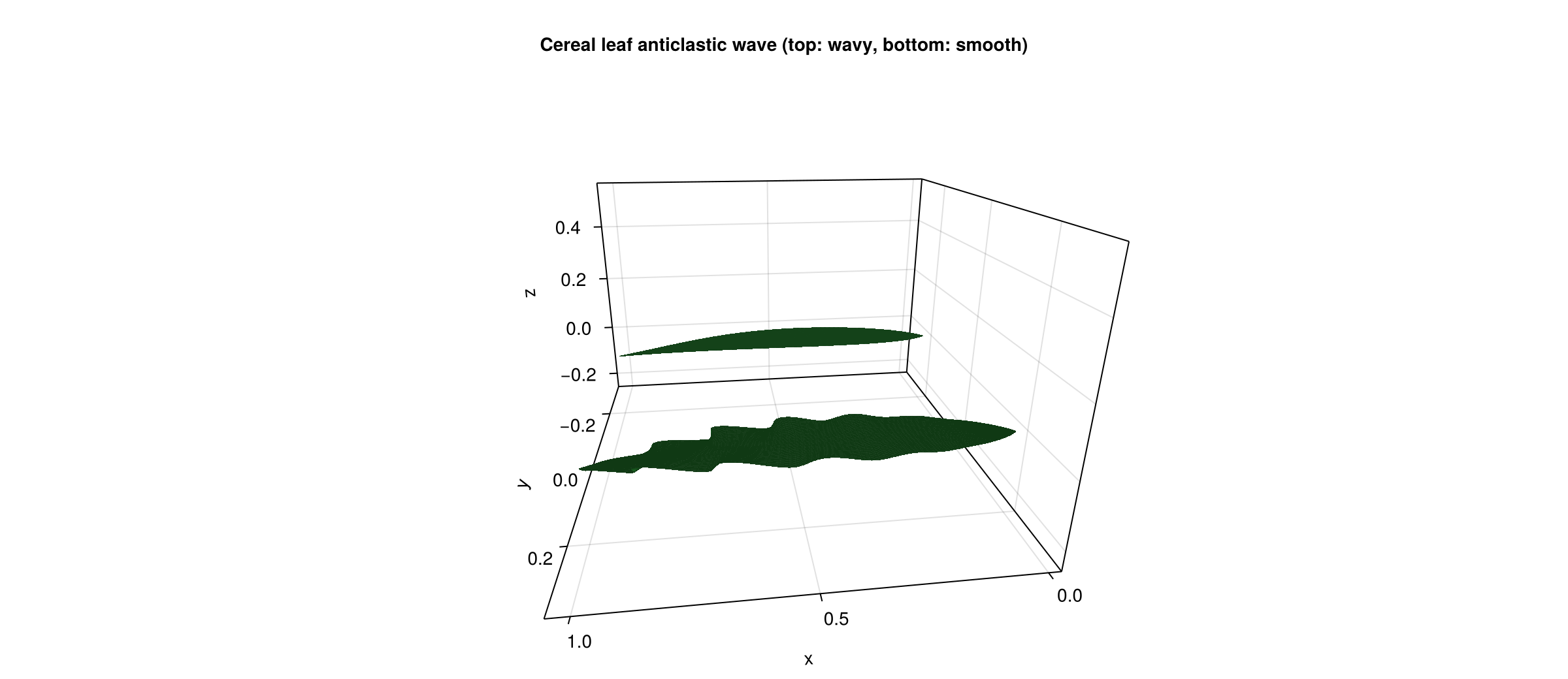

fig = Figure(size=(1200, 520))
ax = Axis3(
    fig[1, 1];
    title="Cereal leaf anticlastic wave (top: wavy, bottom: smooth)",
    azimuth=1.45,
    elevation=0.36,
    perspectiveness=0.7,
)
mesh!(ax, PlantGeom.geometry_to_mesh(smooth_leaf), color=RGBA(0.18, 0.58, 0.22, 0.95))
mesh!(ax, PlantGeom.geometry_to_mesh(wavy_leaf), color=RGBA(0.14, 0.50, 0.18, 0.95))
Makie.xlims!(ax, -0.03, 1.05)
Makie.ylims!(ax, -0.33, 0.33)
Makie.zlims!(ax, -0.26, 0.56)
fig

This deforms the blade itself. If you instead want topology-driven component bending across segmented organs, use the AMAP stiffness/orthotropy pipeline from Conventions Reference.

Node-Level Procedural Geometry

ExtrudedTubeGeometry is a procedural node geometry source. It does not point to an existing RefMesh; the local mesh is generated from path/section parameters.

using PlantGeom
using MultiScaleTreeGraph
using Colors
using GeometryBasics

mtg = Node(NodeMTG(:/, :Plant, 1, 1))
axis = Node(mtg, NodeMTG(:/, :Internode, 1, 2))

axis[:geometry] = ExtrudedTubeGeometry(
    [
        Point(0.0, 0.0, 0.0),
        Point(0.3, 0.02, 0.01),
        Point(0.7, 0.07, 0.04),
        Point(1.1, 0.12, 0.06),
    ];
    n_sides=16,
    radius=0.045,
    radii=[1.0, 0.9, 0.75, 0.6],  # taper
    torsion=false,
    cap_ends=true,
    material=RGB(0.45, 0.35, 0.25),
    transformation=PlantGeom.Translation(0.2, 0.0, 0.0),
)

Main parameters:

• path: centerline points

• n_sides, radius: base circular section

• radii: isotropic scaling along the path

• widths, heights: anisotropic scaling (override radii when provided)

• path_normals, torsion: local frame control

• cap_ends: optional end caps for closed circular sections

• transformation: post-extrusion transform

Reusable Extrusion as RefMesh

If many nodes share the same procedural shape, generate it once and wrap it in a RefMesh, then keep using classic Geometry.

leaf_section = leaflet_midrib_profile(; lamina_angle_deg=42.0, scale=0.5)
leaf_path = [Point(0.0, 0.0, 0.0), Point(0.5, 0.0, 0.08), Point(1.0, 0.0, 0.12)]

leaf_ref = extrude_profile_refmesh(
    "leaf_extruded",
    leaf_section,
    leaf_path;
    widths=[1.0, 0.8, 0.5],
    heights=[1.0, 0.9, 0.7],
    torsion=true,
    close_section=false,
    cap_ends=false,
    material=RGB(0.15, 0.55, 0.25),
)

You can also build mesh first (extrude_profile_mesh, extrude_tube_mesh) then manually wrap it with RefMesh(...).

Path, Profile, and Lathe Helpers

The helpers below cover the full workflow:

• section/profile builders

• path interpolation

• scalar interpolation

• lathe mesh generation

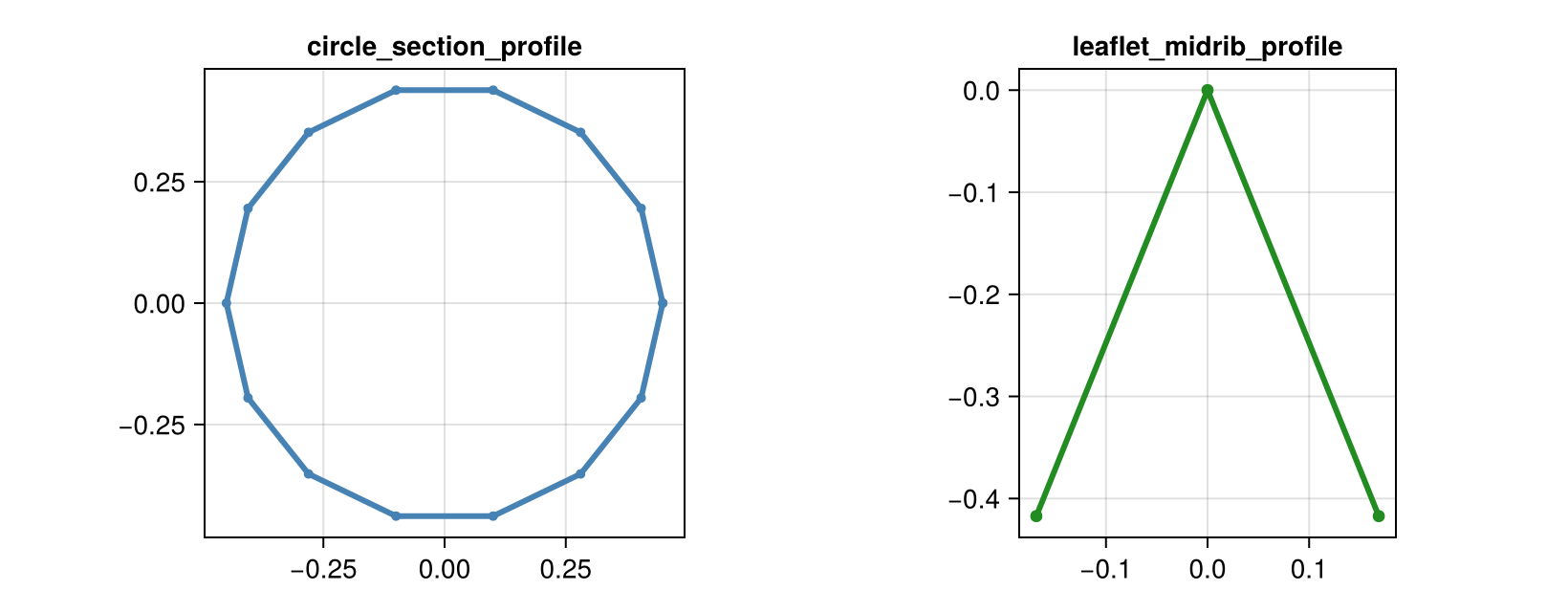

1) Profile helpers

• circle_section_profile(n_sides; radius, close_loop=true): circular section points.

• leaflet_midrib_profile(; lamina_angle_deg, scale): open V-shaped leaflet section.

circle = circle_section_profile(14; radius=0.45, close_loop=true)
leaflet = leaflet_midrib_profile(; lamina_angle_deg=44.0, scale=0.45)

fig = Figure(size=(820, 320))
ax1 = Axis(fig[1, 1], title="circle_section_profile", aspect=DataAspect())
lines!(ax1, [p[1] for p in circle], [p[2] for p in circle], color=:steelblue, linewidth=3)
scatter!(ax1, [p[1] for p in circle], [p[2] for p in circle], color=:steelblue, markersize=7)

ax2 = Axis(fig[1, 2], title="leaflet_midrib_profile", aspect=DataAspect())
lines!(ax2, [p[1] for p in leaflet], [p[2] for p in leaflet], color=:forestgreen, linewidth=3)
scatter!(ax2, [p[1] for p in leaflet], [p[2] for p in leaflet], color=:forestgreen, markersize=9)

fig

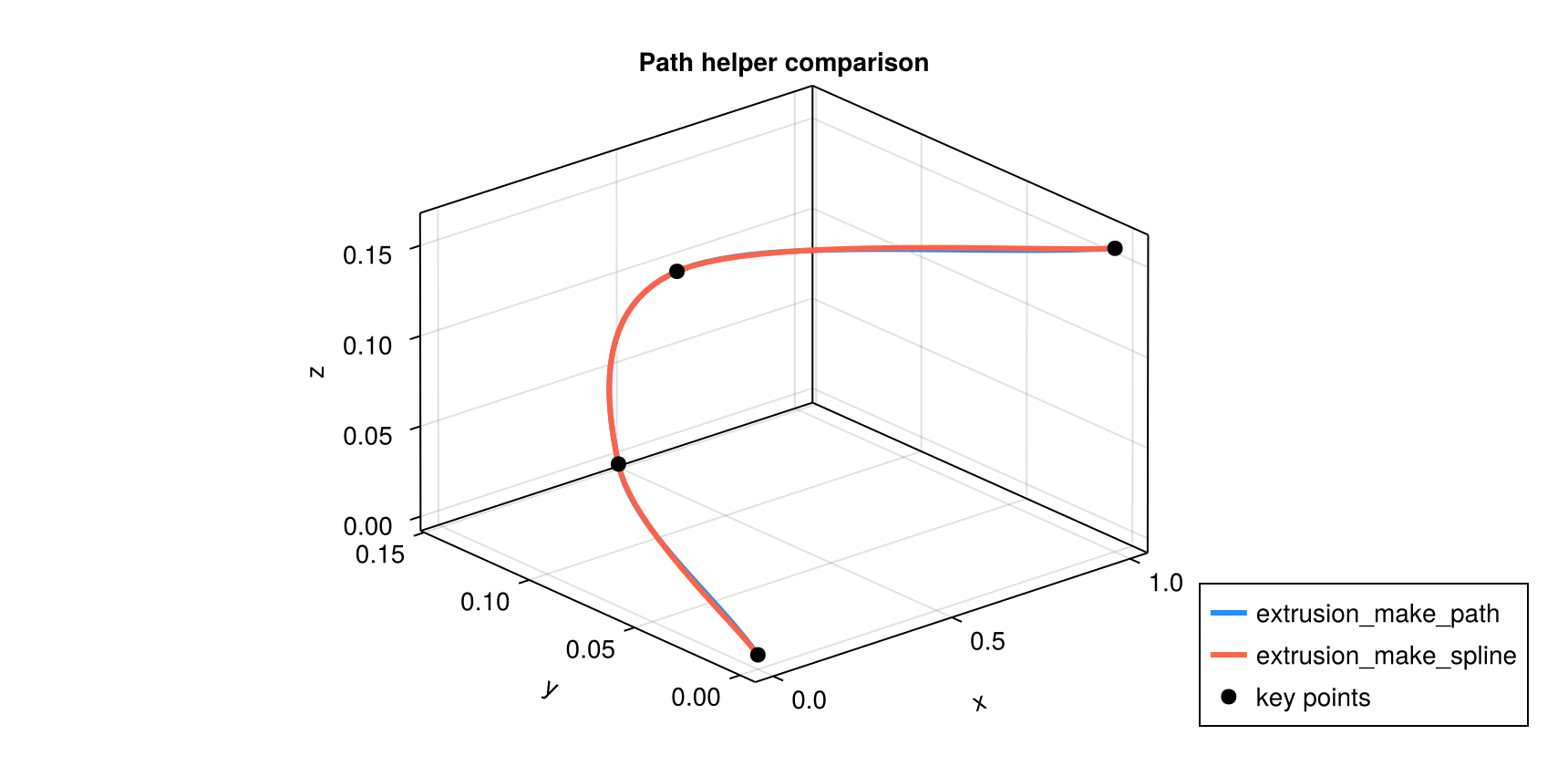

2) Path interpolation helpers

• extrusion_make_path(n, key_points; key_tangents=nothing): Hermite-style interpolation.

• extrusion_make_spline(n, key_points): Catmull-Rom spline interpolation.

key_points = [
    Point(0.0, 0.0, 0.0),
    Point(0.2, 0.1, 0.04),
    Point(0.6, 0.14, 0.10),
    Point(1.0, 0.0, 0.16),
]

path_hermite = extrusion_make_path(70, key_points)
path_spline = extrusion_make_spline(70, key_points)

fig = Figure(size=(860, 420))
ax = Axis3(fig[1, 1], title="Path helper comparison")
lines!(
    ax,
    [p[1] for p in path_hermite],
    [p[2] for p in path_hermite],
    [p[3] for p in path_hermite],
    color=:dodgerblue,
    linewidth=3,
    label="extrusion_make_path",
)
lines!(
    ax,
    [p[1] for p in path_spline],
    [p[2] for p in path_spline],
    [p[3] for p in path_spline],
    color=:tomato,
    linewidth=3,
    label="extrusion_make_spline",
)
scatter!(
    ax,
    [p[1] for p in key_points],
    [p[2] for p in key_points],
    [p[3] for p in key_points],
    color=:black,
    markersize=12,
    label="key points",
)
axislegend(ax, position=:rb)
fig

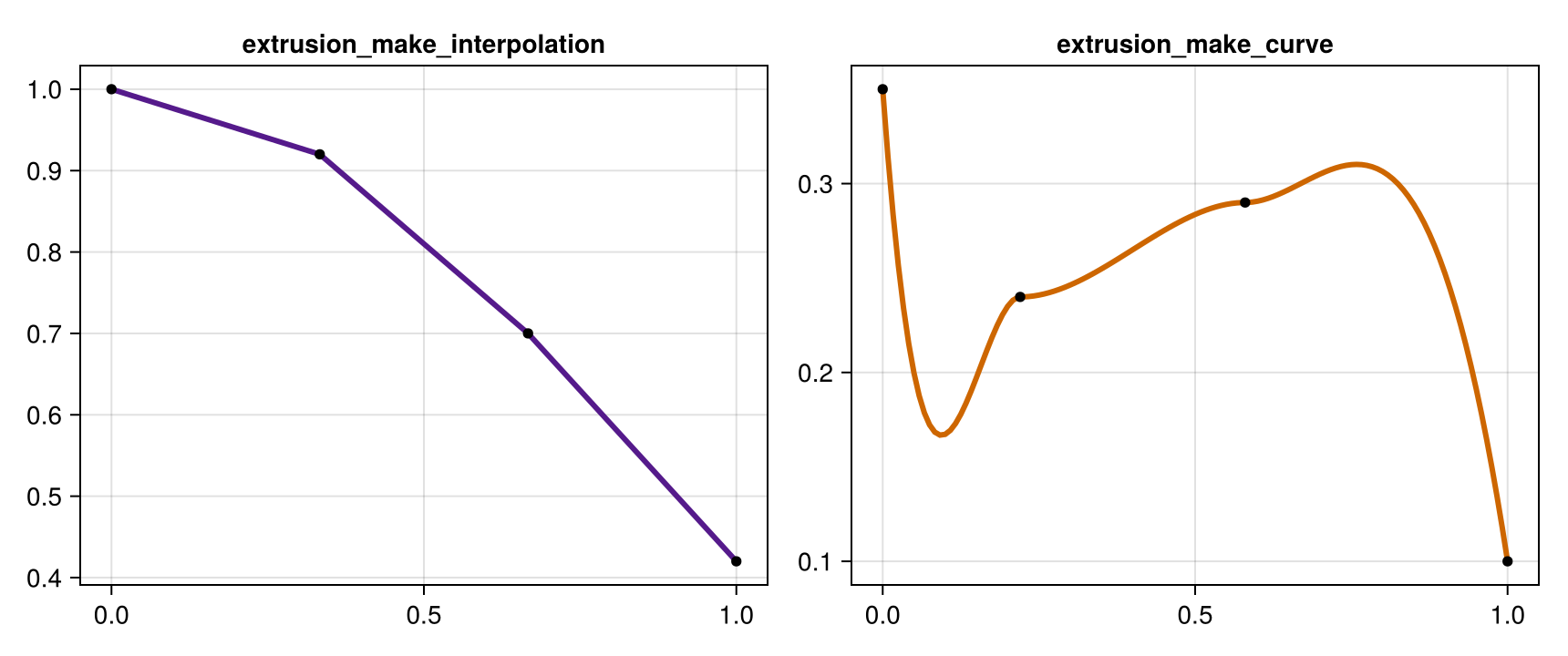

3) Scalar interpolation helpers

• extrusion_make_interpolation(n, key_values): linear interpolation of key scalar values.

• extrusion_make_curve(z_keys, r_keys, n): AMAP-like extrema-preserving curve sampling.

key_values = [1.0, 0.92, 0.70, 0.42]
interp = extrusion_make_interpolation(60, key_values)
x_interp = range(0.0, 1.0; length=length(interp))

z_keys = [0.0, 0.22, 0.58, 1.0]
r_keys = [0.35, 0.24, 0.29, 0.10]
z_samples, r_samples = extrusion_make_curve(z_keys, r_keys, 120)

fig = Figure(size=(860, 360))
ax1 = Axis(fig[1, 1], title="extrusion_make_interpolation")
lines!(ax1, x_interp, interp, color=:purple4, linewidth=3)
scatter!(ax1, range(0.0, 1.0; length=length(key_values)), key_values, color=:black, markersize=8)

ax2 = Axis(fig[1, 2], title="extrusion_make_curve")
lines!(ax2, z_samples, r_samples, color=:darkorange3, linewidth=3)
scatter!(ax2, z_keys, r_keys, color=:black, markersize=8)

fig

4) Visual extrusion from profile + path

You can combine helper outputs directly with extrude_profile_mesh.

section = leaflet_midrib_profile(; lamina_angle_deg=40.0, scale=0.35)
path = extrusion_make_spline(70, key_points)
widths = extrusion_make_interpolation(70, [1.0, 0.95, 0.7, 0.45])
heights = extrusion_make_interpolation(70, [1.0, 1.0, 0.85, 0.60])

mesh_leaflet = extrude_profile_mesh(
    section,
    path;
    widths=widths,
    heights=heights,
    torsion=true,
    close_section=false,
    cap_ends=false,
)

fig = Figure(size=(860, 420))
ax = Axis3(fig[1, 1], title="extrude_profile_mesh (leaflet-like)")
mesh!(ax, mesh_leaflet, color=RGBA(0.18, 0.58, 0.28, 0.95))
lines!(
    ax,
    [p[1] for p in path],
    [p[2] for p in path],
    [p[3] for p in path],
    color=:black,
    linewidth=2,
)
fig

5) Lathe helpers

There are two ways to build lathe geometry:

• lathe_mesh / lathe_refmesh: start from sparse key profile data.

• lathe_gen_mesh / lathe_gen_refmesh: start from already sampled (z, radius) arrays.

lathe_mesh(...; method=:curve) uses extrusion_make_curve (extrema-preserving), while method=:spline and method=:path use spline/Hermite interpolation.

z_keys_lathe = [0.0, 0.22, 0.58, 1.0]
r_keys_lathe = [0.34, 0.24, 0.28, 0.09]

lathe_curve = lathe_mesh(18, 90, z_keys_lathe, r_keys_lathe; method=:curve, axis=:x, cap_ends=true)
lathe_spline = lathe_mesh(18, 90, z_keys_lathe, r_keys_lathe; method=:spline, axis=:x, cap_ends=true)

fig = Figure(size=(980, 390))
ax1 = Axis3(fig[1, 1], title="lathe_mesh(method=:curve)")
mesh!(ax1, lathe_curve, color=RGBA(0.58, 0.44, 0.30, 0.95))

ax2 = Axis3(fig[1, 2], title="lathe_mesh(method=:spline)")
mesh!(ax2, lathe_spline, color=RGBA(0.30, 0.48, 0.70, 0.95))

fig

z_samples = collect(range(0.0, 1.0; length=80))
r_samples = [0.31 * (1 - z)^0.85 + 0.02 for z in z_samples]
lathe_gen = lathe_gen_mesh(18, z_samples, r_samples; axis=:x, cap_ends=true)

fig = Figure(size=(520, 380))
ax = Axis3(fig[1, 1], title="lathe_gen_mesh (pre-sampled profile)")
mesh!(ax, lathe_gen, color=RGBA(0.46, 0.36, 0.62, 0.95))
fig

Recommended Pattern

• Repeated geometry: use cached procedural RefMesh constructors.

• Unique per-node geometry: use ExtrudedTubeGeometry directly on nodes.

• In both cases, render with the same plantviz pipeline.
