PlantGeom.jl ​
PlantGeom lets you build, reconstruct, and visualize 3D plants powered by Makie.jl.
Basic usage ​
Import the package and one of Makie's backends (e.g.
CairoMakieorGLMakie)Read a plant or scene from a file or build one with PlantGeom's API
Visualize it with
plantviz
Read 3D files and visualize ​

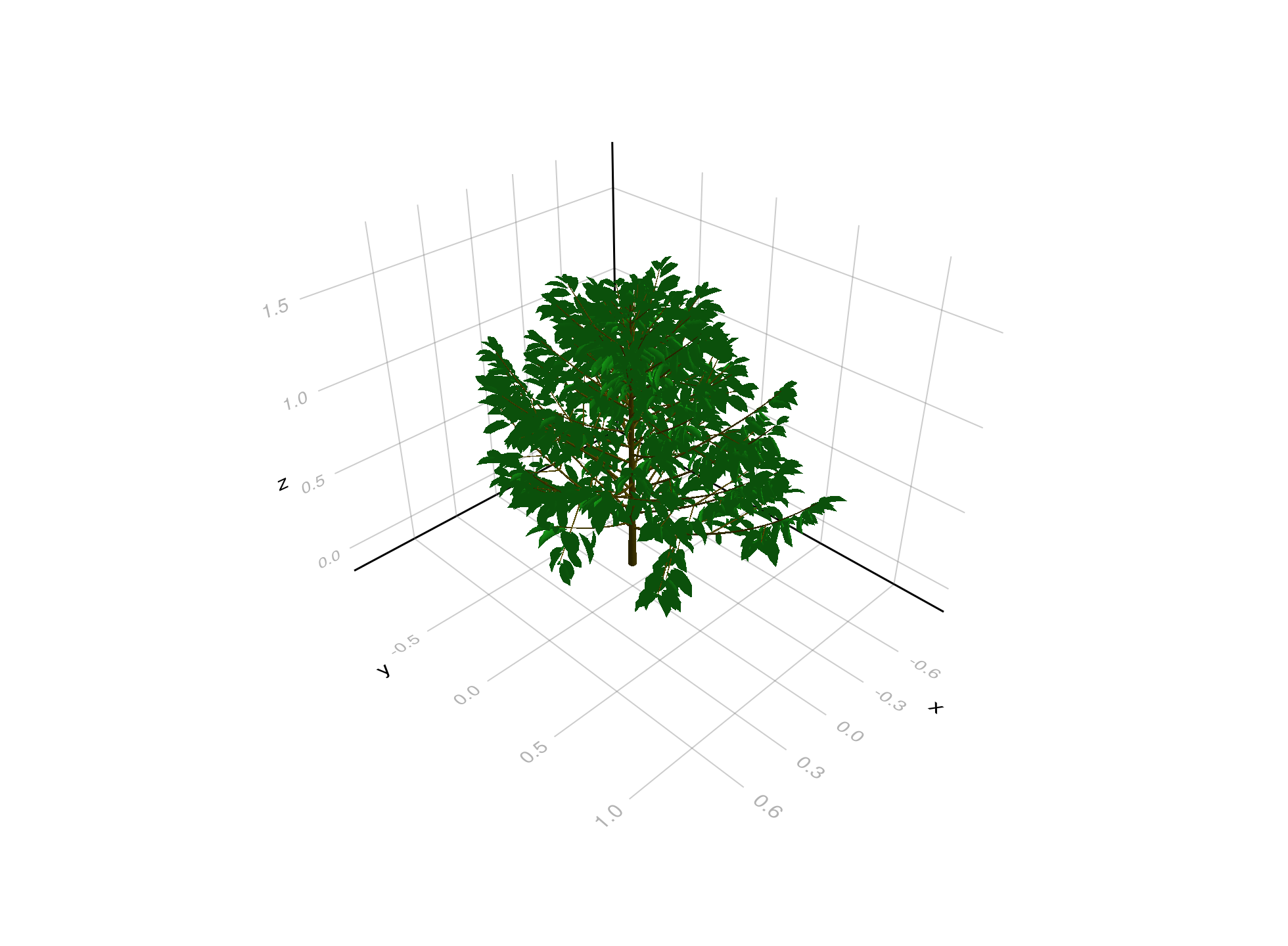

We can read a plant from an OpenPlantFormat file (.opf) and visualize it with plantviz:
julia
using PlantGeom
using CairoMakie
files_dir = joinpath(dirname(dirname(pathof(PlantGeom))), "test", "files")
coffee = read_opf(joinpath(files_dir, "coffee.opf"))
plantviz(coffee, figure=(size=(980, 720),))

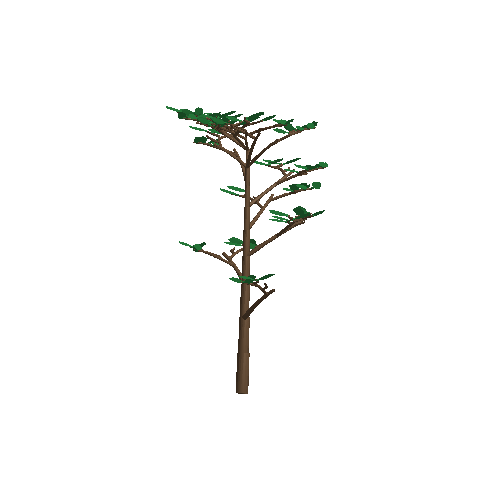

Simulate growth ​
We can build a plant with PlantGeom's growth API, and we can also color it with any attribute, e.g. height:
julia
using PlantGeom
using CairoMakie
include(joinpath(pkgdir(PlantGeom), "docs", "src", "getting_started", "tree_demo_helpers.jl"))
tree_demo = build_demo_tree_with_growth_api()
f, ax, p = plantviz(tree_demo, figure=(size=(860, 780),), color=:ZZ)
colorbar(f[1, 2], p, label="Height")
f
Build geometry from a Multi-scale Tree Graph ​

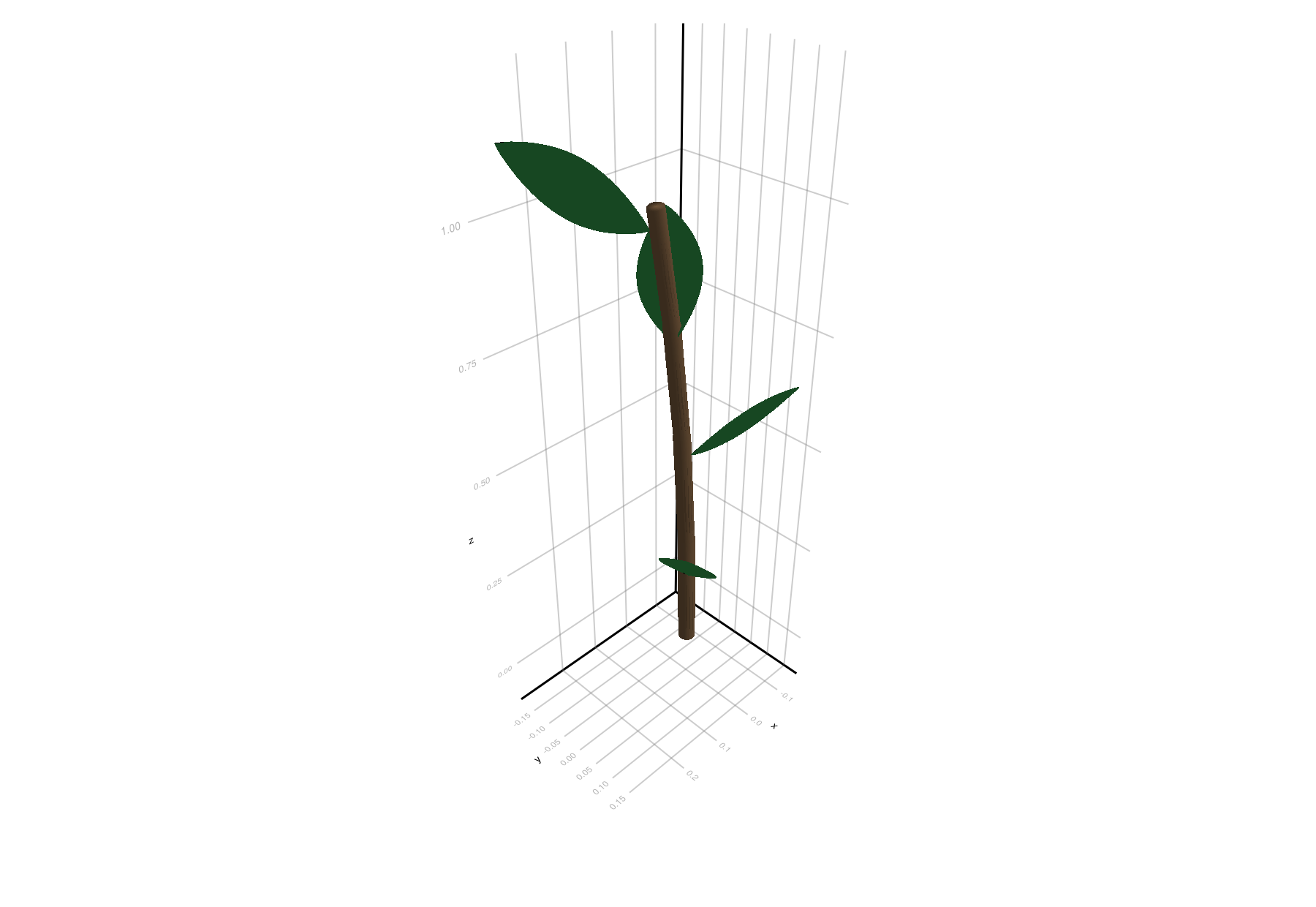

You can also read an MTG (Multi-Scale Tree Graph) and PlantGeom will automatically build its geometry based on the standard MTG's topology and attributes along with reference meshes for organs:
julia
using PlantGeom
using MultiScaleTreeGraph
using GeometryBasics
using Colors
using CairoMakie
mtg = read_mtg(joinpath(pkgdir(PlantGeom), "test", "files", "reconstruction_standard.mtg"))
stem_reference_mesh = RefMesh("stem", GeometryBasics.mesh(GeometryBasics.Cylinder(Point(0,0,0), Point(1,0,0), 0.5)), RGB(0.5, 0.38, 0.26))
leaf_reference_mesh = lamina_refmesh("leaf"; length=1.0, max_width=1.0, material=RGB(0.2, 0.62, 0.30))
prototypes = Dict(:Internode => RefMeshPrototype(stem_reference_mesh), :Leaf => RefMeshPrototype(leaf_reference_mesh))
set_geometry_from_attributes!(mtg, prototypes; convention=default_amap_geometry_convention())
plantviz(mtg, figure=(size=(900, 620),))
Mini Glossary ​
Here's a mini glossary of some of the terms used in PlantGeom.jl documentation:
| Term | Practical meaning |
|---|---|
Node | A node (computer-graphics node, not botanic) representing one organ instance (stem segment, leaf, etc.) |
MTG | graph made of connected Nodes storing topology + attributes |
RefMesh | reusable normalized reference mesh for organs, e.g. the mesh used for the leaves |
Prototype | rule for turning node attributes into geometry |
rebuild_geometry! | explicit geometry generation/update step |
