Makie.jl recipes

Page Info

• Audience: Beginner to Intermediate

• Prerequisites: MTG loaded in memory

• Time: 8 minutes

• Output: 2D/3D topology diagrams with Makie

Diagram

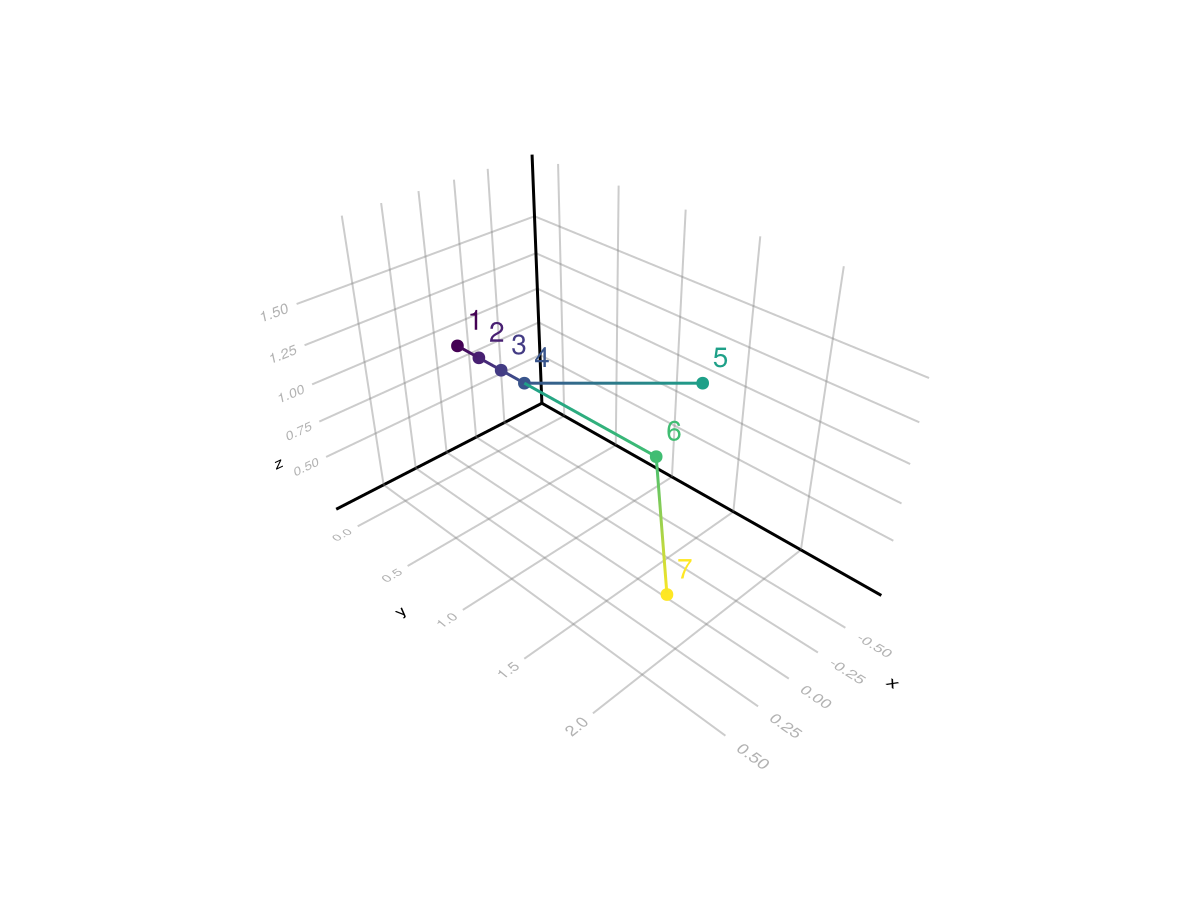

We can make a diagram of the MTG graph using the diagram function:

using PlantGeom, CairoMakie
opf = read_opf(joinpath(dirname(dirname(pathof(PlantGeom))),"test","files","simple_plant.opf"))
diagram(opf)

We can change the color of the nodes:

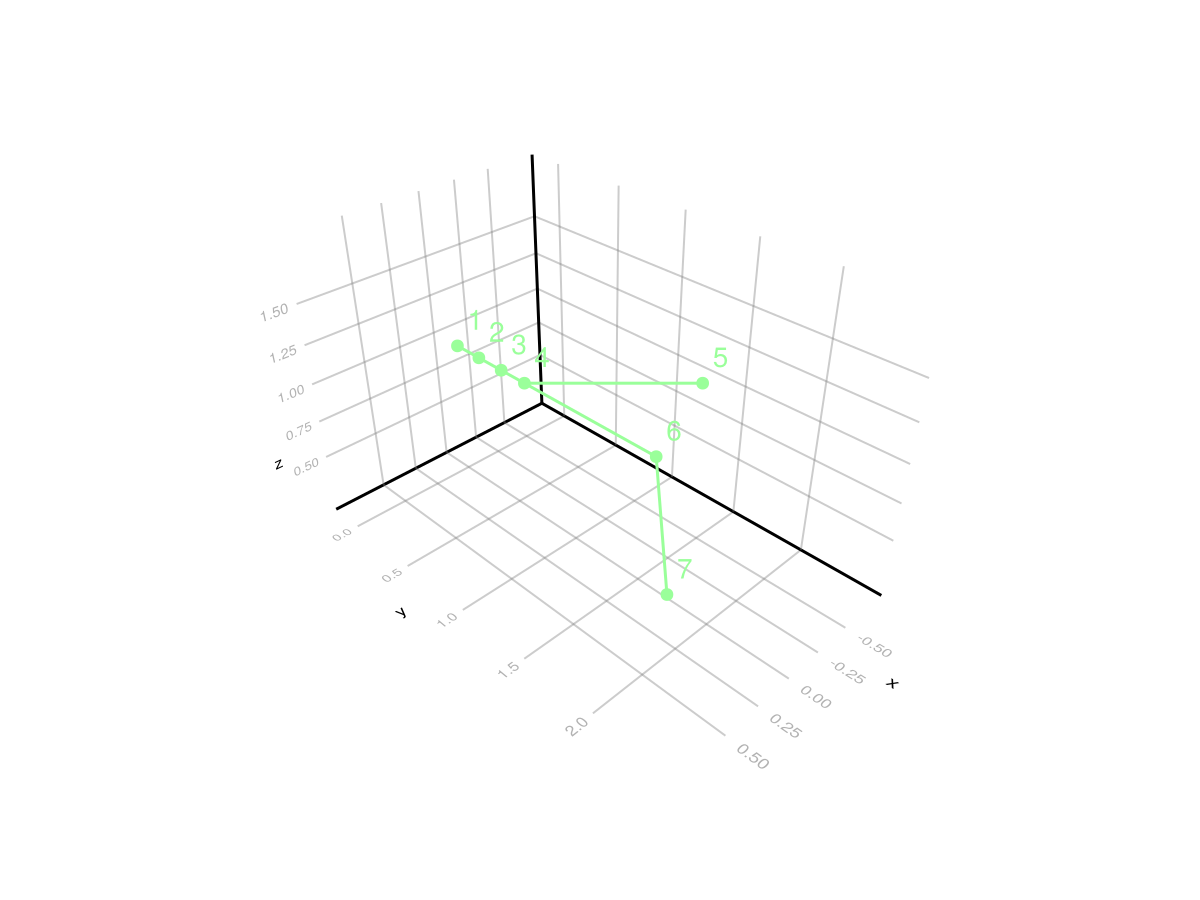

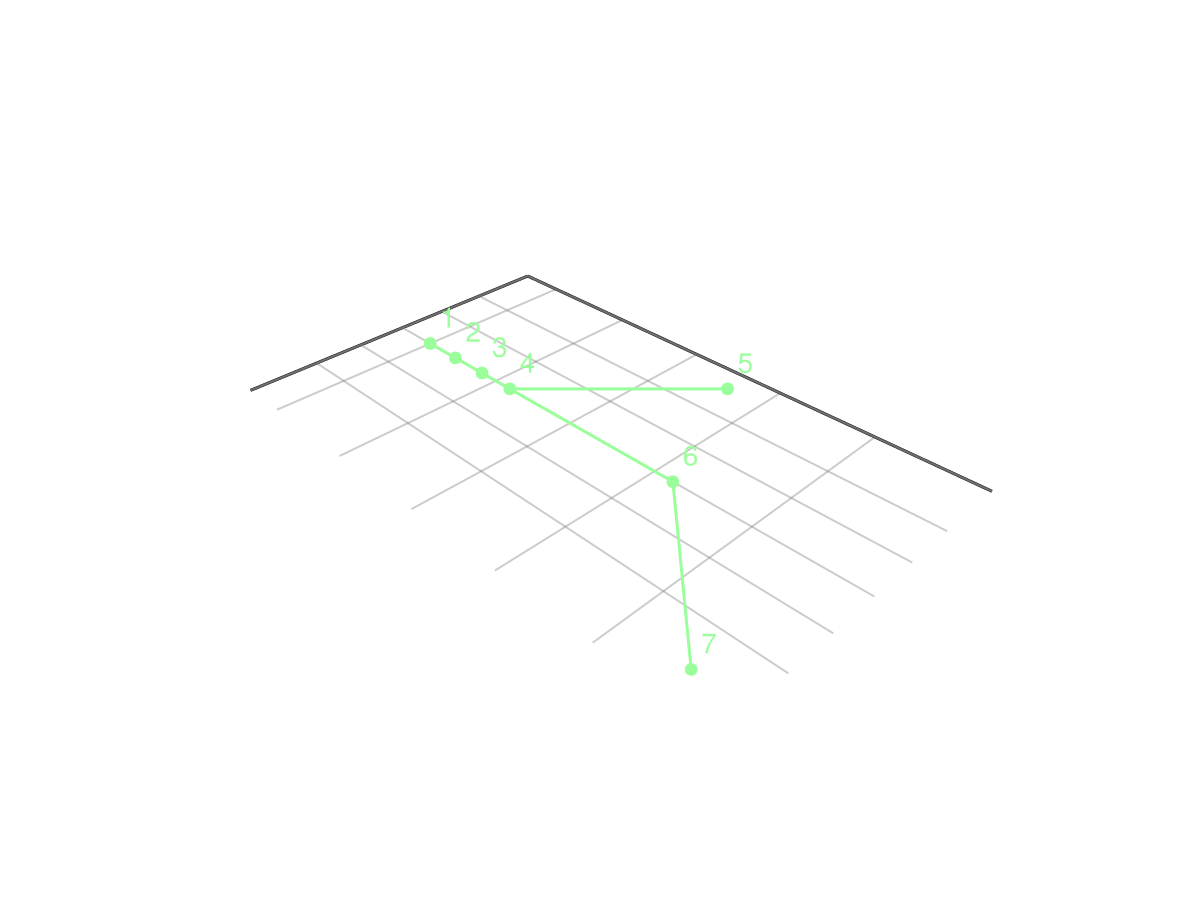

diagram(opf, color = :palegreen1)

The color argument is for the node color. The edges are colored with the same color than the nodes by default, but you can also use a different color if you want using edge_color:

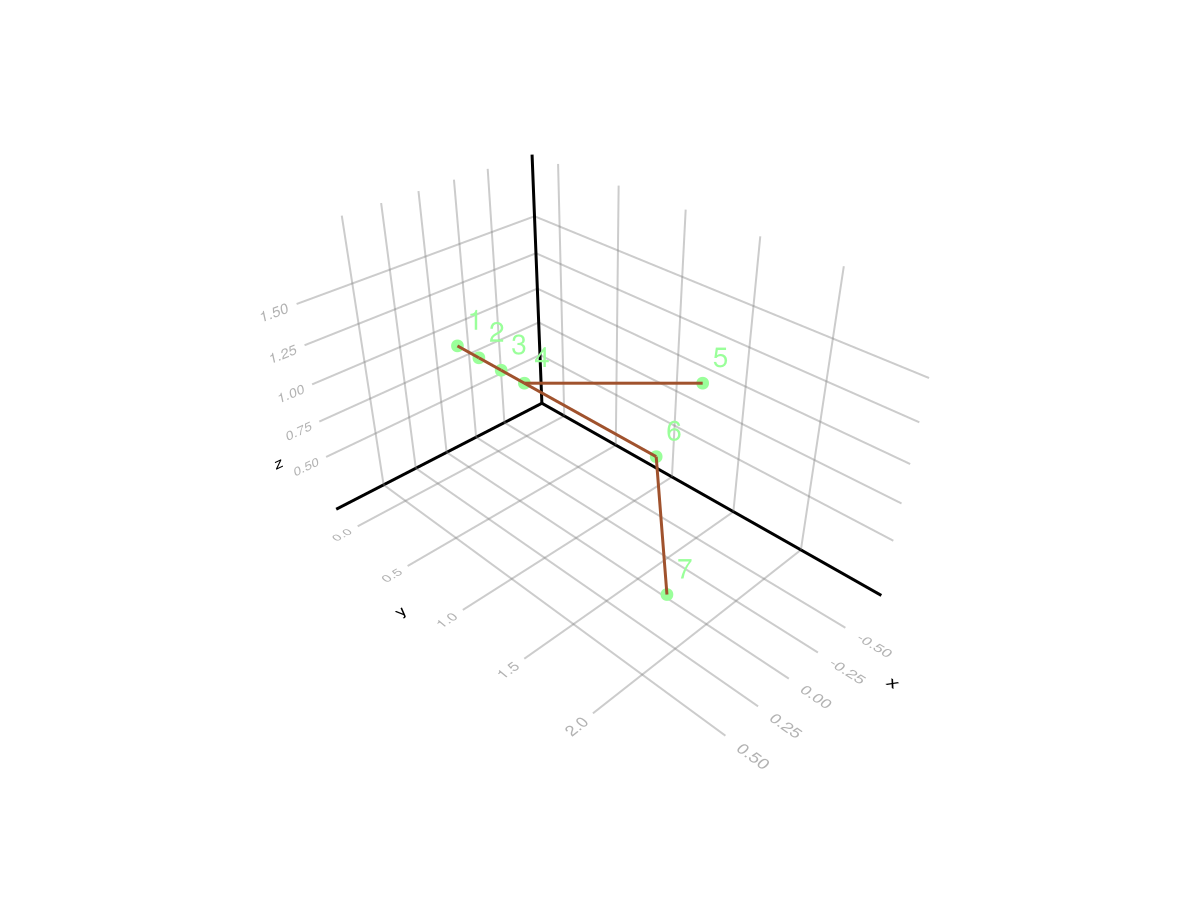

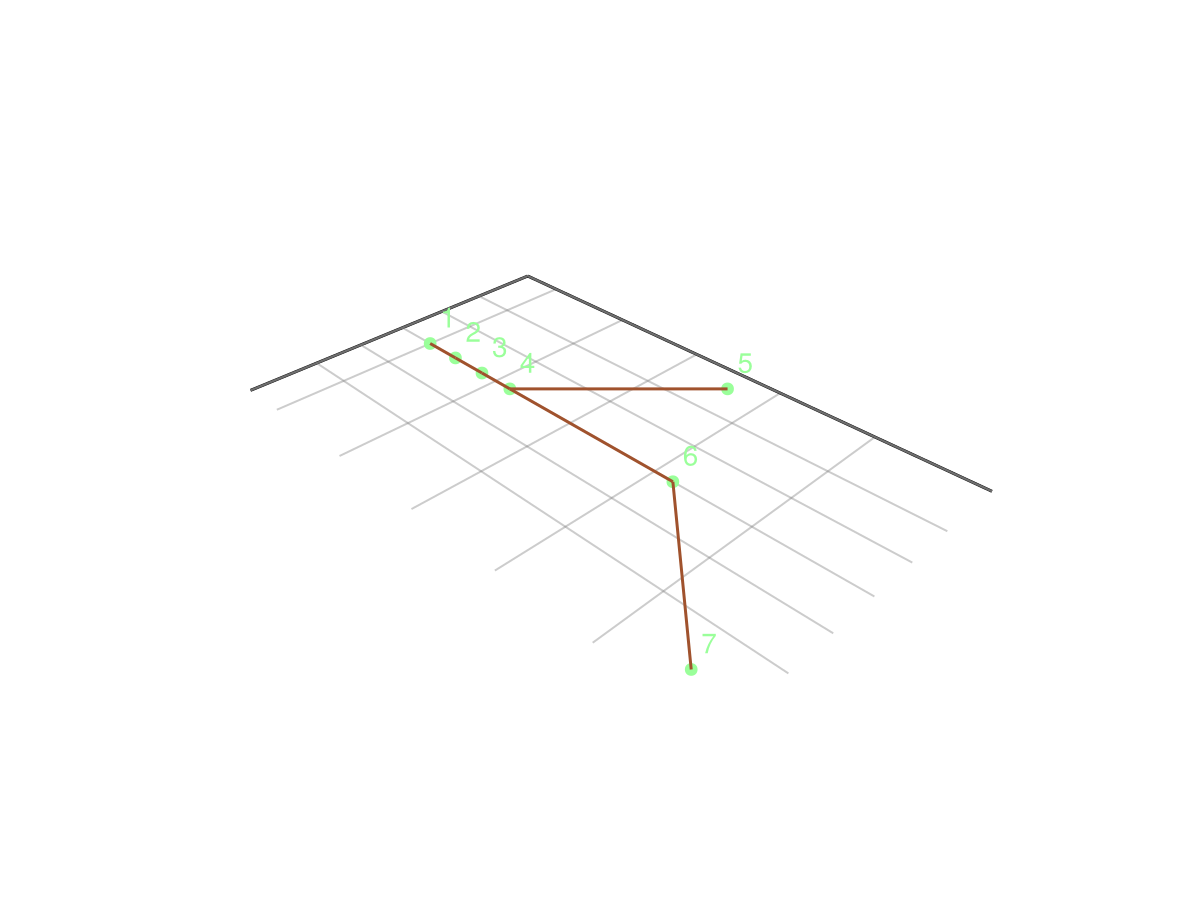

diagram(opf, color = :palegreen1, edge_color = :sienna)

You can also color your nodes based on an attribute from the MTG, e.g. using the nodes Z coordinates:

# First, we compute "fake" coordinates for each node in the MTG (just for ploting):
PlantGeom.coordinates!(opf, force = true)
# Then we plot the MTG using the newly created ZZ attribute:

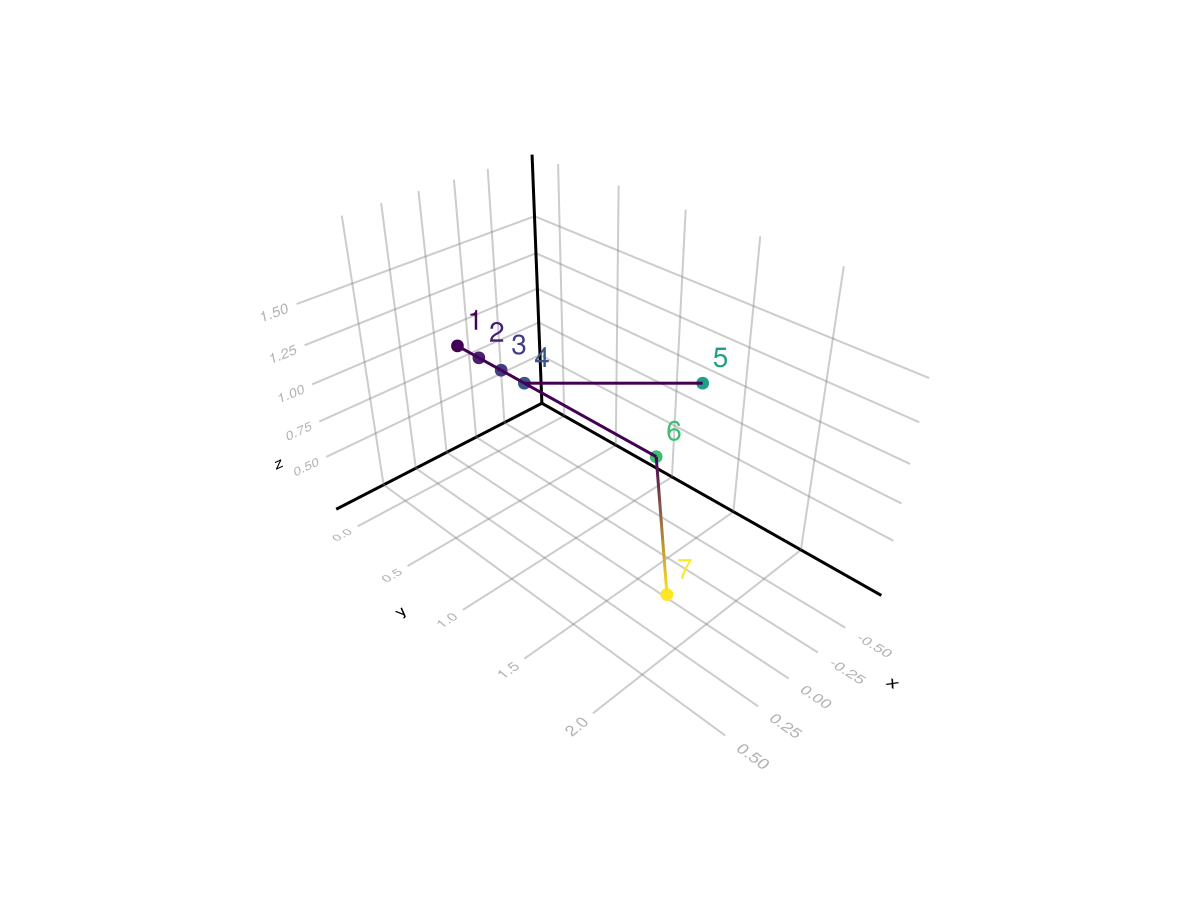

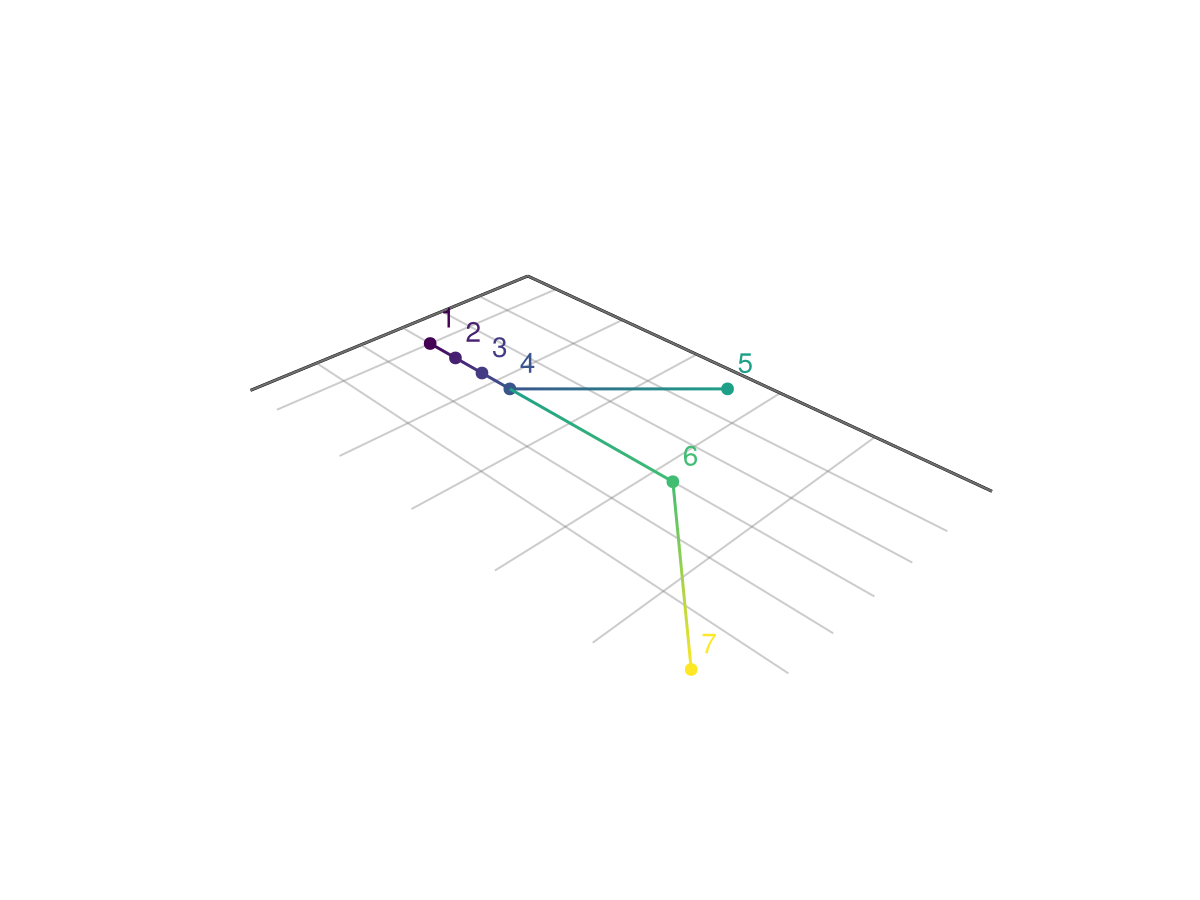

diagram(opf, color = :YY)

We can also color the edges differently, e.g. using the XX attribute computed using coordinates!:

PlantGeom.coordinates!(opf, force = true)

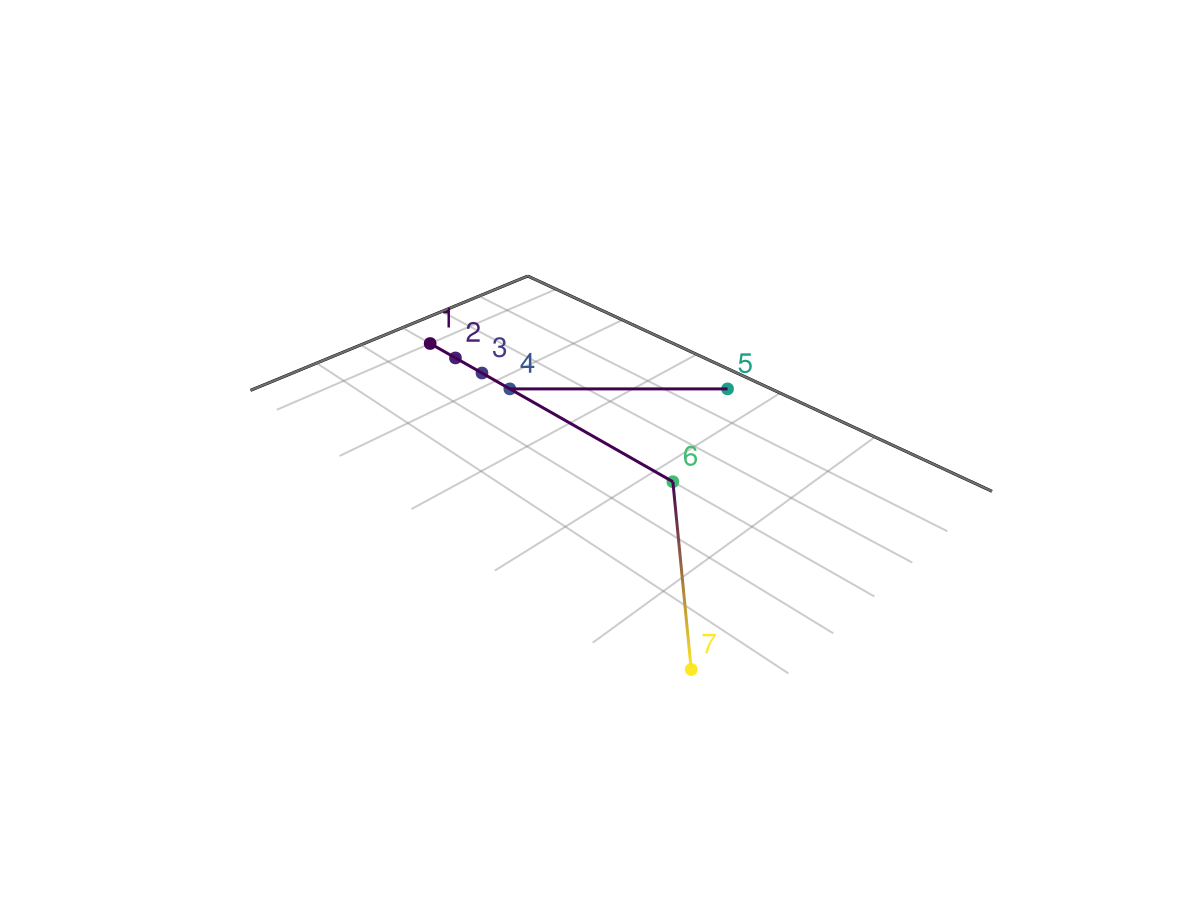

diagram(opf, color = :YY, edge_color = :XX)

Attributes used for coloring may have missing values. In this case you can choose their color using color_missing, e.g.:

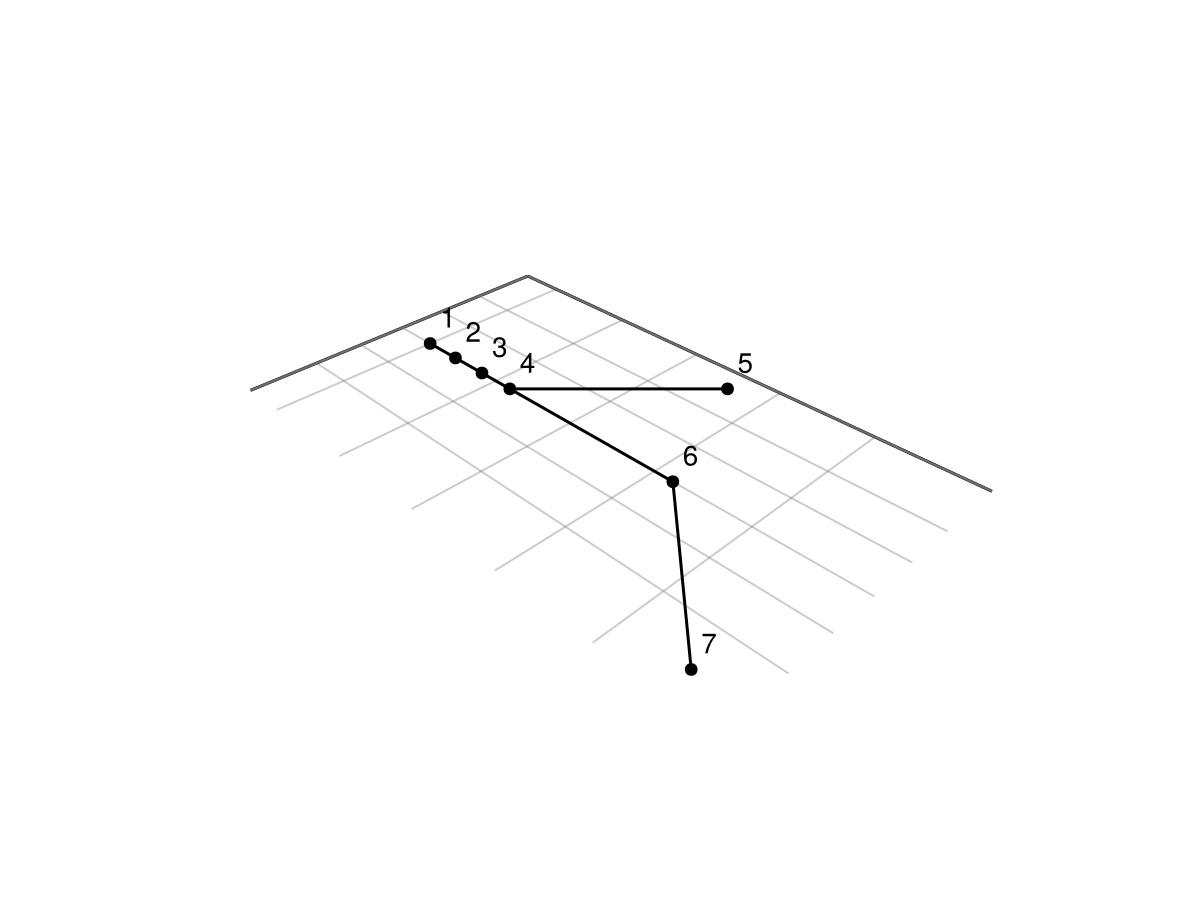

diagram(opf, color = :Length, edge_color = :Width, color_missing = :red)
