PlantGeom provides a framework for representing, manipulating, and visualizing 3D plant architecture. The package builds on top of MultiScaleTreeGraph, and reserves the node's :geometry attribute.

Features

Declaring 3D geometry

  • Define a reference mesh for an organ, and efficiently reuse it with RefMesh (one canonical mesh, many transformed instances)
  • Attach geometry per node with Geometry(ref_mesh=..., transformation=...)
  • Generate procedural meshes like ExtrudedTubeGeometry for axes, stems, and roots
  • Compose transforms (Translation, LinearMap, Rotate, Scale, Affine) in MTG workflows

See:

Plotting

  • Render plant meshes in 3D with plantviz / plantviz!
  • Color by mesh defaults, constants, dictionaries, or MTG attributes
  • Use Makie backends (GLMakie, WGLMakie, CairoMakie) for interactive or static output
  • Inspect topology with diagram in 2D/3D

Reading and writing files

  • OPF files: read_opf and write_opf
  • OPS scenes: read_ops_file, read_ops, and write_ops

Showcase

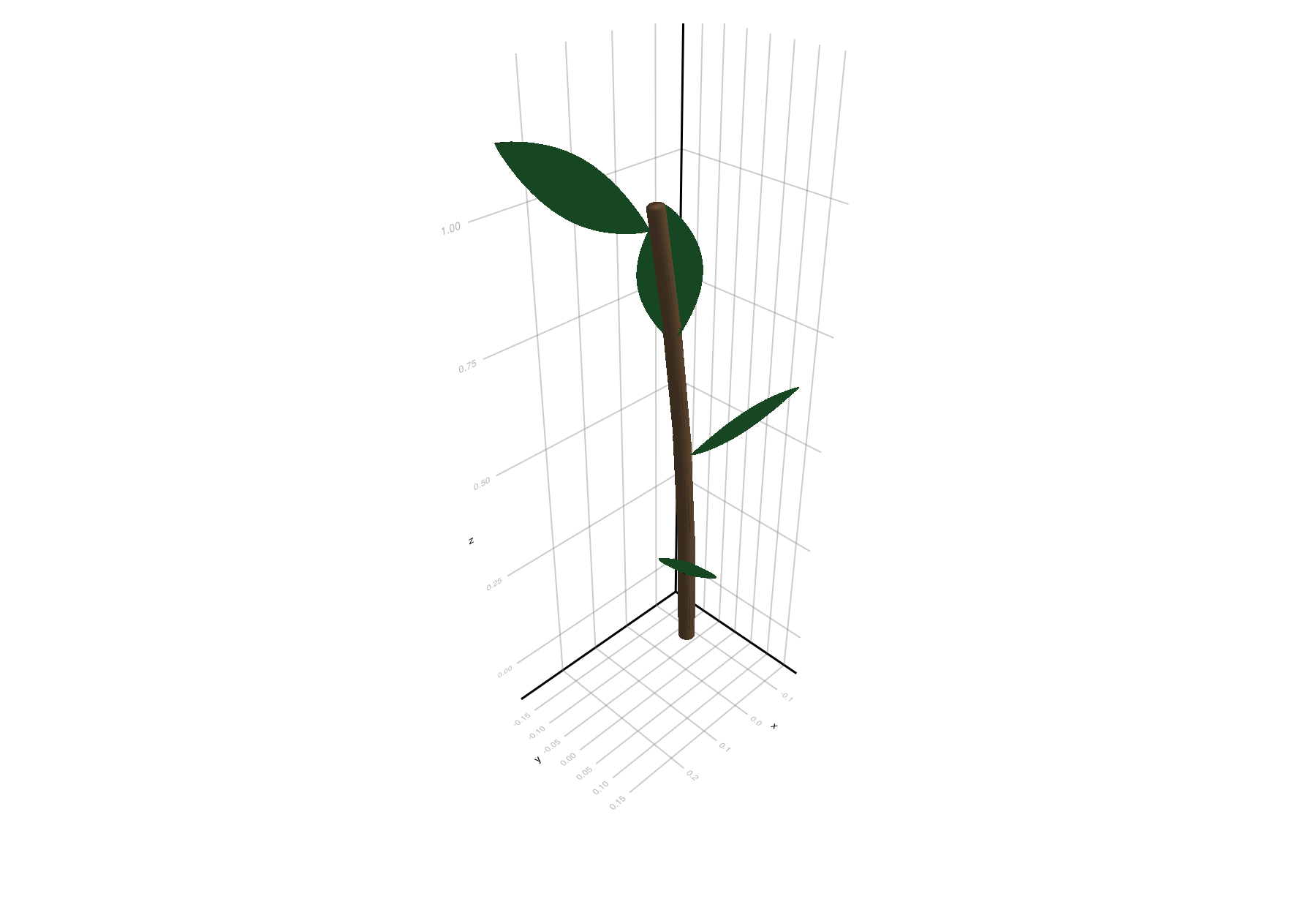

Small example plant file in 3D

plantviz(small_opf, figure=(size=(860, 640),))

Same plant as a 2D MTG graph

diagram(small_opf, color=:olivedrab3, edge_color=:gray35)

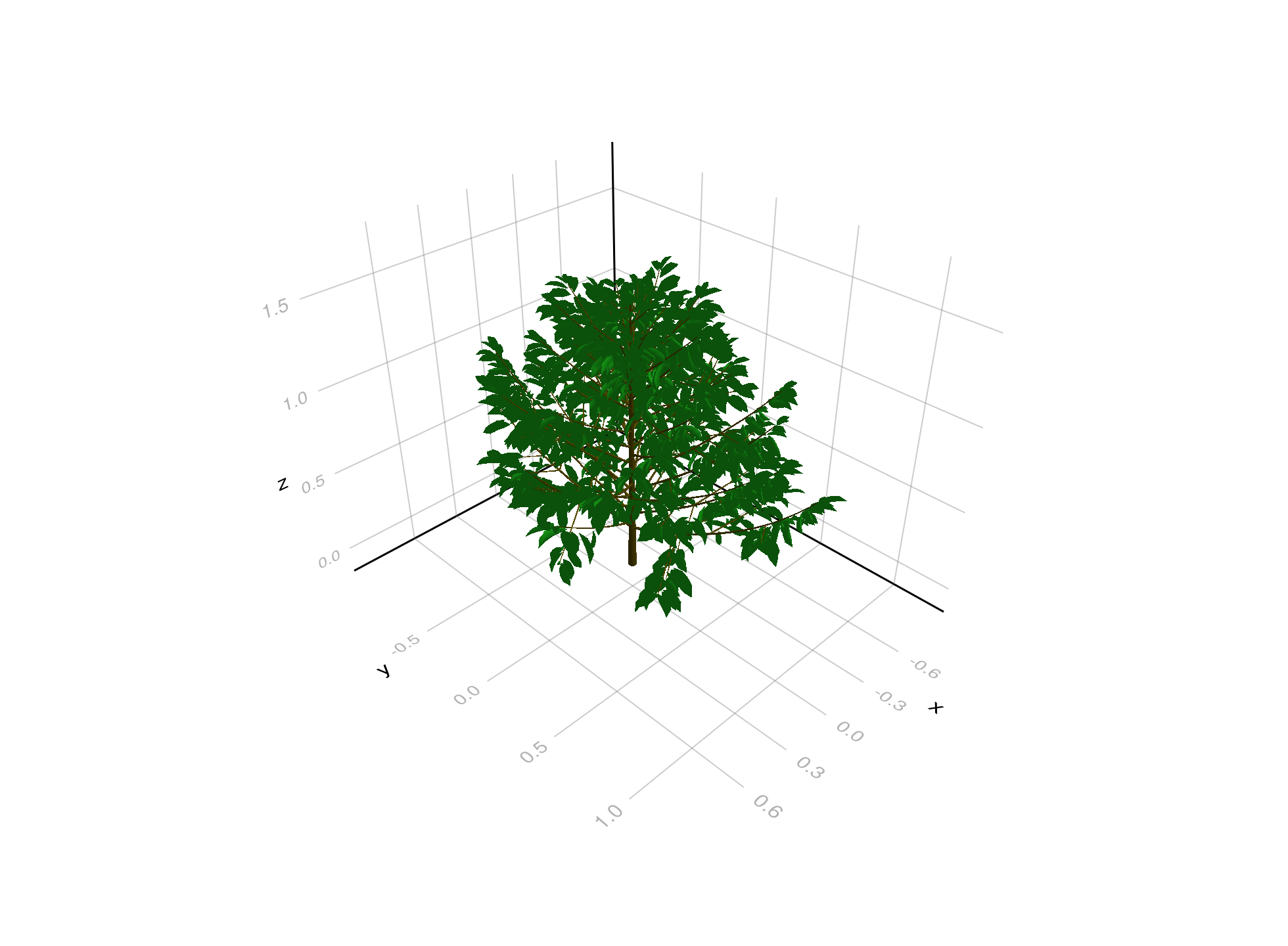

Coffee plant in 3D

plantviz(coffee_opf, figure=(size=(900, 700),))

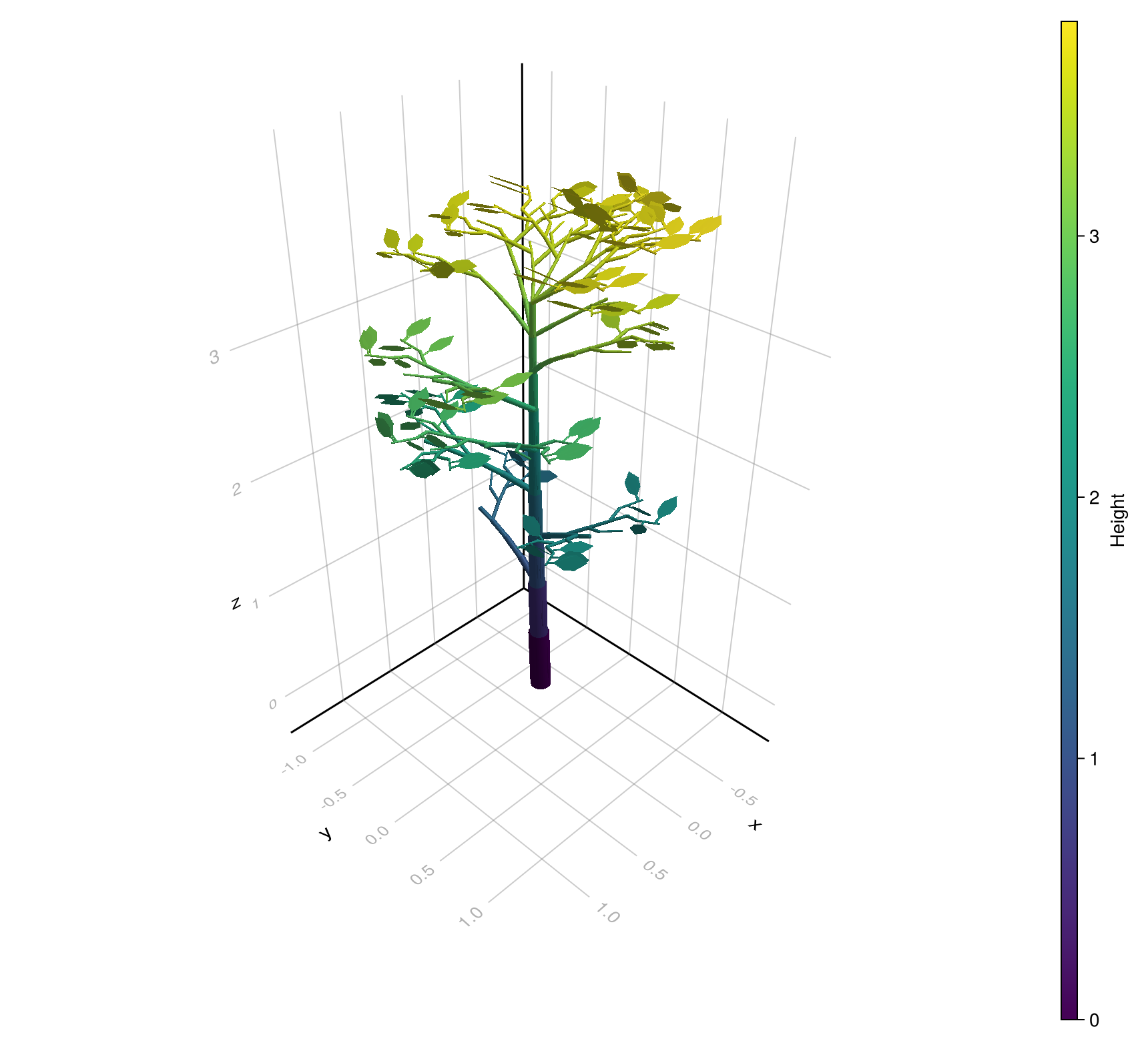

Coffee plant colored by a variable (e.g. :light_interception or :Area)

f, ax, p = plantviz(coffee_opf, color=:Area, figure=(size=(900, 700),))
colorbar(f[1, 2], p)
f

3D palm generated with XPalm + RayMakie

Palm generated with the VPalm module from XPalm.jl, which uses PlantGeom for geometry management, and then rendered with RayMakie by Simon Danisch:

3D palm generated with XPalm and rendered with RayMakie

A tree fully generated with PlantGeom

plantviz(tree_demo, figure=(size=(980, 980),))
Example block output
Code to reproduce this image
using CairoMakie
using PlantGeom
using MultiScaleTreeGraph
using GeometryBasics
using Colors

CairoMakie.activate!()

function leaf_mesh_with_petiole()
    p = [
        Point(0.07, 0.00, 0.000),
        Point(0.15, 0.044, 0.005),
        Point(0.25, 0.048, 0.010),
        Point(0.35, 0.000, 0.013),
        Point(0.25, -0.048, 0.010),
        Point(0.15, -0.044, 0.005),
    ]

    tri = GeometryBasics.TriangleFace{Int}
    blade_faces = tri[
        tri(1, 2, 3), tri(1, 3, 4), tri(1, 4, 5), tri(1, 5, 6),
        tri(3, 2, 1), tri(4, 3, 1), tri(5, 4, 1), tri(6, 5, 1),
    ]
    blade = GeometryBasics.Mesh(p, blade_faces)

    petiole = GeometryBasics.mesh(
        GeometryBasics.Cylinder(Point(0.0, 0.0, 0.0), Point(0.07, 0.0, 0.0), 0.0038),
    )

    GeometryBasics.merge([petiole, blade])
end

leaf_ref = RefMesh("leaf_with_petiole", leaf_mesh_with_petiole(), RGB(0.20, 0.62, 0.30))

function add_axis!(parent, edge, axis_id, path, radius, color)
    node = Node(parent, NodeMTG(edge, :Axis, axis_id, 2))
    node[:geometry] = ExtrudedTubeGeometry(
        path;
        n_sides=14,
        radius=radius,
        radii=collect(range(1.0, 0.70; length=length(path))),
        torsion=false,
        cap_ends=true,
        material=color,
    )
    node
end

function add_leaf!(parent, leaf_id, anchor, azimuth_deg, tilt_deg, leaf_ref)
    node = Node(parent, NodeMTG(:+, :Leaf, leaf_id, 3))
    rot = PlantGeom.LinearMap(
        PlantGeom.RotZ(deg2rad(azimuth_deg)) *
        PlantGeom.AngleAxis(deg2rad(tilt_deg), 0.0, 1.0, 0.0),
    )
    tr = PlantGeom.Translation(anchor[1], anchor[2], anchor[3])
    node[:geometry] = PlantGeom.Geometry(ref_mesh=leaf_ref, transformation=PlantGeom.compose(tr, rot))
    node
end

function advance_point(p, azimuth_deg, elevation_deg, length)
    c = cosd(elevation_deg)
    Point(
        p[1] + length * c * cosd(azimuth_deg),
        p[2] + length * c * sind(azimuth_deg),
        p[3] + length * sind(elevation_deg),
    )
end

function lerp_point(a, b, t)
    Point(
        (1 - t) * a[1] + t * b[1],
        (1 - t) * a[2] + t * b[2],
        (1 - t) * a[3] + t * b[3],
    )
end

@inline branch_jitter(a, b, c, amp) = amp * sin(0.77 * a + 1.13 * b + 1.91 * c)

function grow_axis_chain!(parent, start_point, axis_counter;
    first_edge,
    n_segments,
    azimuth_deg,
    elevation_deg,
    base_length,
    taper,
    radius,
    color,
    azimuth_curve=0.0,
    elevation_curve=0.0,
)
    node = parent
    p0 = start_point
    tips = []

    for seg in 1:n_segments
        seg_length = base_length * taper^(seg - 1)
        seg_azimuth = azimuth_deg + azimuth_curve * (seg - 1)
        seg_elevation = elevation_deg + elevation_curve * (seg - 1)
        p1 = advance_point(p0, seg_azimuth, seg_elevation, seg_length)

        axis_counter[] += 1
        edge = seg == 1 ? first_edge : :<
        seg_radius = radius * 0.84^(seg - 1)
        node = add_axis!(node, edge, axis_counter[], [p0, p1], seg_radius, color)
        push!(tips, (node=node, start=p0, tip=p1, azimuth=seg_azimuth, elevation=seg_elevation))
        p0 = p1
    end

    tips
end

function add_leaf_fan!(carrier, leaf_counter, leaf_ref; n=2, azimuth_shift=84.0, fan_step=9.0, tilt=54.0)
    n == 0 && return
    for k in 1:n
        t = 0.42 + 0.42 * (k / (n + 1))
        anchor = lerp_point(carrier.start, carrier.tip, t)
        fan = (k - (n + 1) / 2) * fan_step
        leaf_counter[] += 1
        add_leaf!(
            carrier.node,
            leaf_counter[],
            anchor,
            carrier.azimuth + azimuth_shift + fan,
            tilt,
            leaf_ref,
        )
    end
end

function build_demo_tree()
    tree = Node(NodeMTG(:/, :Plant, 1, 1))

    axis_counter = Ref(0)
    leaf_counter = Ref(0)

    bark_main = RGB(0.45, 0.34, 0.24)
    bark_branch = RGB(0.41, 0.31, 0.23)
    bark_twig = RGB(0.37, 0.28, 0.21)
    bark_fine = RGB(0.47, 0.36, 0.28)

    trunk = grow_axis_chain!(
        tree,
        Point(0.0, 0.0, 0.0),
        axis_counter;
        first_edge=:/,
        n_segments=9,
        azimuth_deg=8.0,
        elevation_deg=87.0,
        base_length=0.54,
        taper=0.90,
        radius=0.078,
        color=bark_main,
        azimuth_curve=2.0,
        elevation_curve=0.2,
    )

primary_specs = [
    (seg=2, az=-96.0, el=34.0, len=0.23),
    (seg=3, az=70.0, el=35.0, len=0.26),
    (seg=4, az=-44.0, el=35.0, len=0.28),
    (seg=5, az=18.0, el=34.0, len=0.30),
    (seg=6, az=-10.0, el=35.0, len=0.30),
    (seg=7, az=58.0, el=36.0, len=0.29),
    (seg=8, az=-122.0, el=37.0, len=0.26),
    (seg=8, az=-84.0, el=38.0, len=0.20),
    (seg=8, az=116.0, el=36.0, len=0.18),
    (seg=9, az=144.0, el=35.0, len=0.22),
    (seg=9, az=102.0, el=35.0, len=0.17),
    (seg=9, az=-170.0, el=34.0, len=0.19),
    (seg=9, az=-138.0, el=33.0, len=0.15),
]

    for (p_rank, spec) in enumerate(primary_specs)
        trunk_tip = trunk[spec.seg]
        primary = grow_axis_chain!(
            trunk_tip.node,
            trunk_tip.tip,
            axis_counter;
            first_edge=:+,
            n_segments=4,
            azimuth_deg=spec.az,
            elevation_deg=spec.el,
            base_length=spec.len,
            taper=0.84,
            radius=0.024 * 0.92^(p_rank - 1),
            color=bark_branch,
            azimuth_curve=4.0,
            elevation_curve=-2.2,
        )

    secondary_side_state = isodd(p_rank) ? -1.0 : 1.0
    for (seg_rank, p_tip) in enumerate(primary)
        seg_rank == 1 && continue
        secondary_selector = branch_jitter(p_rank, seg_rank, 8, 1.0)
        spawn_secondary = (seg_rank == length(primary) - 1) ||
                          (seg_rank == 2 && secondary_selector > -0.10)
        spawn_secondary || continue
        secondary_side = secondary_side_state
        secondary_side_state *= -1.0
        secondary_az_jitter = branch_jitter(p_rank, seg_rank, 1, 6.0)
        secondary_el_jitter = branch_jitter(p_rank, seg_rank, 2, 1.8)

            secondary = grow_axis_chain!(
                p_tip.node,
                p_tip.tip,
                axis_counter;
                first_edge=:+,
                n_segments=3,
                azimuth_deg=p_tip.azimuth + secondary_side * (36.0 + 9.0 * seg_rank) + secondary_az_jitter,
                elevation_deg=p_tip.elevation - 8.0 + secondary_el_jitter,
                base_length=0.21 * 0.90^(seg_rank - 1),
                taper=0.82,
                radius=0.011,
                color=bark_twig,
                azimuth_curve=4.6 * secondary_side,
                elevation_curve=-2.4,
            )

            o4_side_state = -secondary_side
            for (s_rank, s_tip) in enumerate(secondary)
                o4_side = o4_side_state
                o4_side_state *= -1.0
                o4_az_jitter = branch_jitter(p_rank, seg_rank, s_rank, 5.0)
                o4_el_jitter = branch_jitter(p_rank, seg_rank, s_rank + 5, 1.4)
                order4 = grow_axis_chain!(
                    s_tip.node,
                    s_tip.tip,
                    axis_counter;
                    first_edge=:+,
                    n_segments=1,
                    azimuth_deg=s_tip.azimuth + o4_side * (40.0 + 7.0 * s_rank) + o4_az_jitter,
                    elevation_deg=s_tip.elevation - 6.0 + o4_el_jitter,
                    base_length=0.145 * 0.90^(s_rank - 1),
                    taper=0.9,
                    radius=0.0085,
                    color=bark_fine,
                )

                o4_tip = order4[end]
                o5_side = -o4_side
                o5_az_jitter = branch_jitter(p_rank + 2, seg_rank, s_rank, 4.0)
                o5_el_jitter = branch_jitter(p_rank + 3, seg_rank, s_rank, 1.1)
                order5 = grow_axis_chain!(
                    o4_tip.node,
                    o4_tip.tip,
                    axis_counter;
                    first_edge=:+,
                    n_segments=2,
                    azimuth_deg=o4_tip.azimuth + o5_side * 36.0 + o5_az_jitter,
                    elevation_deg=o4_tip.elevation - 5.0 + o5_el_jitter,
                    base_length=0.09,
                    taper=0.86,
                    radius=0.0052,
                    color=bark_fine,
                )

                if s_rank >= length(secondary) - 1 && isodd(seg_rank + p_rank)
                    add_leaf_fan!(
                        o4_tip,
                        leaf_counter,
                        leaf_ref;
                        n=1,
                        azimuth_shift=66.0 * o4_side,
                        fan_step=8.0,
                        tilt=12.0,
                    )
                end

                if s_rank >= length(secondary) - 1 || seg_rank == length(primary)
                    for (o5_rank, o5_tip) in enumerate(order5)
                        leaf_side = branch_jitter(p_rank + 7, seg_rank, 10 * s_rank + o5_rank, 1.0) >= 0 ? 1.0 : -1.0
                        add_leaf_fan!(
                            o5_tip,
                            leaf_counter,
                            leaf_ref;
                            n=(o5_rank == length(order5) ? 2 : 1),
                            azimuth_shift=(70.0 + 8.0 * o5_rank) * leaf_side,
                            fan_step=7.0,
                            tilt=14.0 + 1.5 * o5_rank,
                        )
                    end
                end
            end
        end
    end

    tree
end

tree_demo = build_demo_tree()

plantviz(tree_demo, figure=(size=(980, 980),))

Quick IO snippet

mtg = read_opf("path/to/plant.opf")
write_opf("path/to/plant_copy.opf", mtg)

scene_dimensions, object_table = read_ops_file("path/to/scene.ops")
scene = read_ops("path/to/scene.ops")
write_ops("path/to/scene_copy.ops", scene_dimensions, object_table)
