Whole-Plant Simulation From an MTG​#

A Multi-scale Tree Graph (MTG) describes a plant as connected organs, such as a plant with branches and leaves. It can also store organ attributes and 3D geometry. If you already have an MTG, you can use it to apply the same models to all its leaves.

We first build a tiny plant with two leaves to make each step visible. Then we use a coffee plant supplied with the package and colour its 3D leaves by simulated temperature. The model combination is the same as in Several objects.

Create a plant with two leaves​#

Node connects each new organ to its parent. In this example, the scene contains one plant, and the plant contains two leaves. A model selector such as Many(scale=:Leaf) will use the Leaf label to find them.

using PlantBiophysics, PlantSimEngine, PlantMeteo, Dates, DataFrames
using MultiScaleTreeGraph

mtg_root = Node(MultiScaleTreeGraph.NodeMTG("/", "Scene", 1, 0))
mtg_plant = Node(mtg_root, MultiScaleTreeGraph.NodeMTG("+", "Plant", 1, 1))
mtg_sun = Node(mtg_plant, MultiScaleTreeGraph.NodeMTG("+", "Leaf", 1, 2))
mtg_shade = Node(mtg_plant, MultiScaleTreeGraph.NodeMTG("+", "Leaf", 2, 2))

See the MultiScaleTreeGraph introduction for the meaning of the MTG relation symbols and scales. For this simulation, the useful point is that we can associate each leaf's inputs and results with its own node.

Supply weather and leaf inputs​#

The leaves share three hourly weather records. The sunlit leaf receives more absorbed light than the shaded leaf; both keep those light inputs constant throughout this example.

weather = Weather([
    Atmosphere(T=20.0, Wind=1.0, P=101.3, Rh=0.65, duration=Hour(1)),
    Atmosphere(T=23.0, Wind=1.5, P=101.3, Rh=0.60, duration=Hour(1)),
    Atmosphere(T=25.0, Wind=2.0, P=101.3, Rh=0.55, duration=Hour(1)),
])

initial_statuses = IdDict(
    mtg_sun => Status(Ra_SW_f=20.0, sky_fraction=1.0, aPPFD=1500.0, d=0.03),
    mtg_shade => Status(Ra_SW_f=8.0, sky_fraction=0.5, aPPFD=600.0, d=0.02),
)

Ra_SW_f is in W m⁻² of leaf, aPPFD in µmol photons m⁻² of leaf s⁻¹, and d in m. IdDict associates a separate Status with each exact leaf node. We could also read these inputs from existing MTG attributes, as in the coffee example below.

Associate the models with the leaves​#

CompositeModel reads the MTG and creates the objects to simulate. status=node -> ... provides initial values for each node; here the scene and plant have no model inputs, so the function returns nothing for them.

applications = (
    ModelSpec(Monteith(); name=:energy_balance, on=Many(scale=:Leaf)),
    ModelSpec(Fvcb(); name=:photosynthesis, on=Many(scale=:Leaf)),
    ModelSpec(Medlyn(0.03, 12.0); name=:stomatal_conductance, on=Many(scale=:Leaf)),
)

readable_id = node -> Symbol(lowercase(string(symbol(node))), "_", node_id(node))
node_kind = node -> Symbol(symbol(node)) == :Scene ? :scene : :plant

scene = CompositeModel(
    mtg_root;
    id=readable_id,
    kind=node_kind,
    status=node -> get(initial_statuses, node, nothing),
    applications=applications,
    environment=weather,
)

[(object_id=object_id(scene, node), aPPFD=model_status(scene, node).aPPFD)
 for node in (mtg_sun, mtg_shade)]

id gives the simulation objects readable names based on their MTG node numbers. model_status(scene, node) lets us inspect a leaf using its original node, without relying on its position in a list.

Save leaf temperature at each timestep​#

For a large plant, saving every variable may be unnecessary. OutputRequest lets us keep only the leaf temperature Tₗ, giving this saved series the name :leaf_temperature:

simulation = run!(
    scene;
    steps=length(weather),
    outputs=OutputRequest(
        Many(scale=:Leaf), :Tₗ;
        name=:leaf_temperature,
        application=:energy_balance,
    ),
)

collect_outputs(simulation, :leaf_temperature; sink=DataFrame)

There are six saved values: two leaves × three timesteps. The object identity and timestep indicate which leaf and weather record each result belongs to. The latest values are also accessible from the source nodes:

[(object_id=object_id(scene, node), Tₗ=model_status(scene, node).Tₗ)
 for node in (mtg_sun, mtg_shade)]

The simulation stores its changing values separately from the MTG's attributes. To use results in another tool that reads MTG attributes, copy the values you need back to the nodes explicitly.

Read and visualize a coffee plant​#

An OPF file contains an MTG and its 3D geometry. The bundled coffee plant also contains absorbed PAR, absorbed near-infrared radiation, and visible sky fractions, calculated previously with Archimed-ϕ. We reuse these supplied radiation values; this example does not calculate new light interception.

using PlantBiophysics, PlantSimEngine, PlantMeteo, MultiScaleTreeGraph
using PlantGeom, CairoMakie, Dates, DataFrames

coffee = read_opf(joinpath(pkgdir(PlantBiophysics), "test", "inputs", "scene", "opf", "coffee.opf"))

coffee_weather = read_weather(
    joinpath(pkgdir(PlantMeteo), "test", "data", "meteo.csv"),
    :temperature => :T,
    :relativeHumidity => (values -> values ./ 100) => :Rh,
    :wind => :Wind,
    :atmosphereCO2_ppm => :Cₐ,
    date_format=DateFormat("yyyy/mm/dd"),
)

We set the model parameters explicitly below. Each leaf's absorbed shortwave radiation is the sum of its absorbed PAR and near-infrared radiation. Multiplying absorbed PAR in W m⁻² by 4.57 converts it to absorbed photon flux in µmol m⁻² s⁻¹. Both are already expressed per unit leaf area in this fixture.

coffee_models = (
    Monteith(aₛₕ=2, aₛᵥ=1, ε=0.955, maxiter=10, ΔT=0.01),
    Fvcb(Tᵣ=25.0, JMaxRef=250.0, VcMaxRef=200.0, RdRef=0.6, θ=0.853, α=0.24),
    Medlyn(-0.03, 12.0),
)

coffee_scene = CompositeModel(
    coffee;
    applications=Tuple(
        ModelSpec(model; name=process(model), on=Many(scale=:Leaf))
        for model in coffee_models
    ),
    environment=coffee_weather,
    status=node -> Symbol(symbol(node)) == :Leaf ? Status(
        Ra_SW_f=node[:Ra_PAR_f] + node[:Ra_NIR_f],
        aPPFD=node[:Ra_PAR_f] * 4.57,
        sky_fraction=node[:sky_fraction],
        d=0.3,
    ) : nothing,
)

coffee_simulation = run!(
    coffee_scene;
    steps=length(coffee_weather),
    outputs=OutputRequest(Many(scale=:Leaf), :Tₗ;
        name=:leaf_temperature, application=:energy_balance),
)
coffee_results = collect_outputs(coffee_simulation, :leaf_temperature; sink=DataFrame)
first(DataFrames.select(coffee_results, :timestep, :datetime, :object_id, :value), 6)

Absorbed radiation stays constant across the three records. The characteristic dimension d=0.3 m is also prescribed for every leaf rather than derived from its mesh.

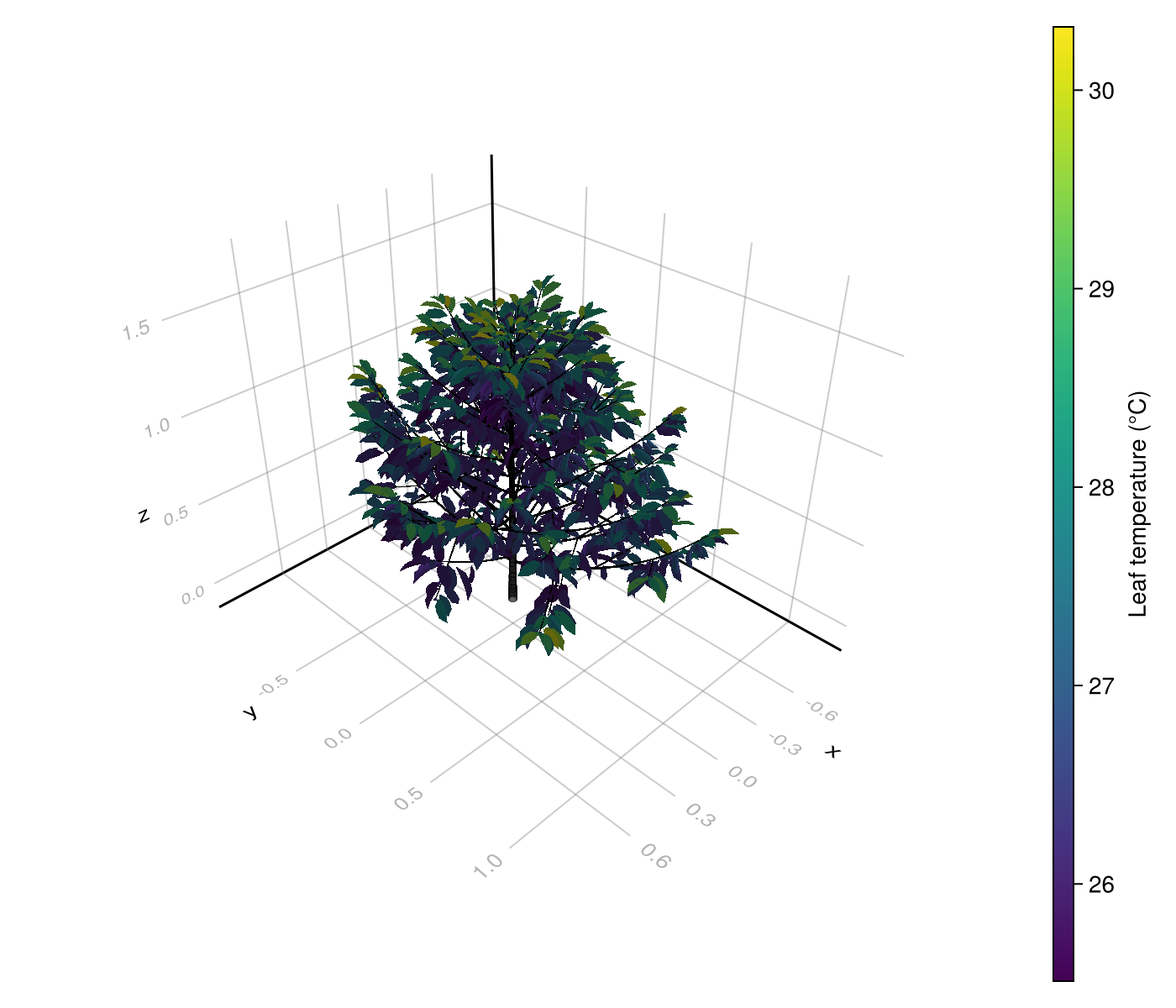

To visualize the second timestep, select its rows and use source_node to find the corresponding MTG node. We store temperature under a new attribute :Tₗ_plot, which PlantGeom can use to colour each leaf.

for row in eachrow(subset(coffee_results, :timestep => ByRow(==(2))))
    source_node(coffee_scene, row.object_id)[:Tₗ_plot] = row.value
end

figure, axis, plot = plantviz(coffee; color=:Tₗ_plot, figure=(size=(700, 600),))
colorbar(figure[1, 2], plot; label="Leaf temperature (°C)")
save("coffee_temperature.png", figure)

The colours show how leaves under different absorbed radiation and sky exposure respond to the same weather. To drive the plant with changing light, provide new radiation inputs at each step, as in Several time steps, or couple a light model using the appropriate leaf-area inputs (see e.g. ArchimedLight.jl).

Oil-palm photosynthesis through the day​#

This animation from our FSPM 2023 presentation shows a young oil palm under three chamber scenarios: 400 ppm CO₂, cloudy conditions, and 600 ppm CO₂. It combines leaf energy balance, photosynthesis, and stomatal conductance with the plant's 3D structure and light interception.

• Leaf colours show simulated net CO₂ assimilation, A, in µmol CO₂ m⁻² of leaf s⁻¹.

• Curves below each plant compare simulated whole-plant CO₂ uptake (line) with chamber measurements (points), in µmol CO₂ plant⁻¹ s⁻¹.

• The clock follows the daily course of the three scenarios, measured on separate days in March 2021.

This is an archived result from the presentation, illustrating CO₂ uptake rather than the allocation of carbon to growing organs. The coffee example above shows how to run and visualise a plant simulation with the current API.
